Ecler TRAIL103BK

Rail-mount loudspeaker

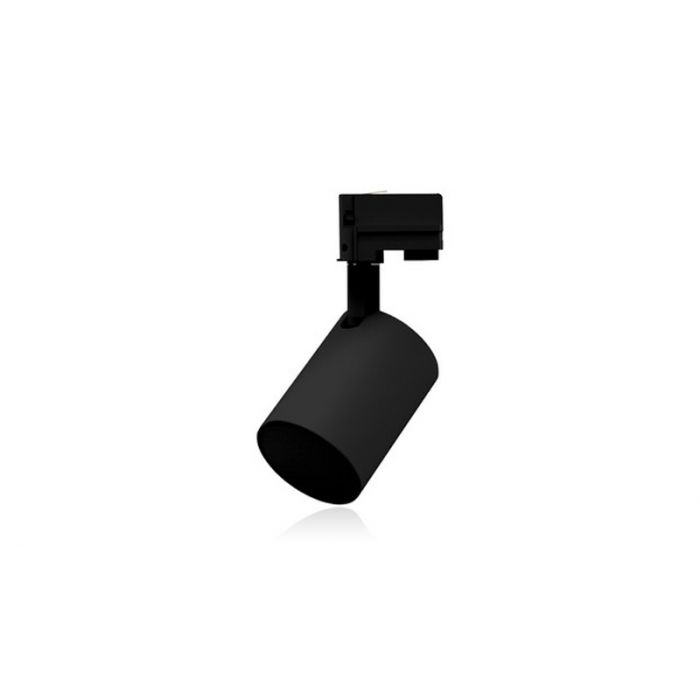

ECLER TRAIL103 is a 3" lamp style loudspeaker cabinet, featuring an installation system which is compatible with ceiling light rails, as well as surface mount, truss mount, etc. High Impedance (15W and 30W taps) and Low Impedance (4 ohm) connections included. White and back colours available.

Ways 1
Driver Diameter 3
Power connections Lo-Z: 4Ω; Hi-Z: 15/30 W @ 100V
Input level/impedance 4Ω/667Ω/333Ω
High frequency response 20 kHz
Sensitivity (dB@1m 1W) 83 dB
Fixing system 4 wire 3 circuit track system
Support arm Swivel (pan and tilt)
Connection type Euroblock terminals
Dimensions (without arm) Ø 96mm x 110mm
Weight 1 Kg
Key Features

• 3" driver

• Mounting options (included): ceiling light rails*, surface mount and truss mount

• Low impedance connection: 4 Ω

• High impedance connection: 15/30W connections

• Available in white (RAL 9003) and black finish (RAL 9005)

• EASE Win file available

*Compatible light rails: 4 wire 3 circuit track system such as Global Track Pro or compatibles



Applications

• Retail

• Hospitality

• Education

• Corporate

• Sports and wellness
