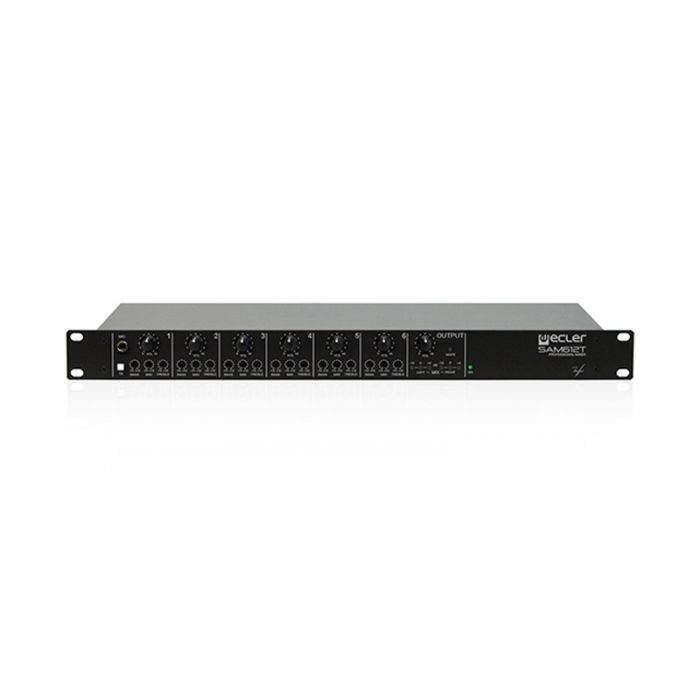

Ecler SAM 612T

ECLER SAM612T is an installation audio mixer in standard rack format, featuring 6 MIC/LINE ST inputs + 1 ST MIX input and 1 ST MAIN output + 1 ST REC output. Each input has a dedicated 3-band tone control, a feature which is fundamental to get a perfect microphone mix in an installation. Input 1 includes talkover (priority) function over the mix bus and additional front panel jack connector. Main output ST/MONO mode switch and MUTE port for external dry contact triggering.

KEY FEATURES
• 6 input channels, 2 main outputs 19” installation mixer
• Micro sensitivity level can be adjusted on the back panel
• +18V Phantom Power available in all “MIC” inputs
• Direct micro input on front panel, channel 1
• Includes a talkover assigned to “INPUT 1” with internal release time adjustment
• Three-band tone controls for each channel, accessible with a screwdriver
• Vu-meter for the mix signal
• Two internally adjustable output levels
• Recording output
• Direct access to the mixing bus allowing you to connect another mixer and increase the number of inputs
• Remote MUTE control affecting all inputs for connecting fire detection systems other safety devices. Internally programmable “NO / NC” (normally open, normally closed)
• Mono/stereo switch
APPLICATIONS
• Gyms
• Licensed venues
• Restaurants
• Leisure venues
• Retail shops
• Boardrooms and conference centres
• Entertainment music playback
• Education centres
• A/V presentations
