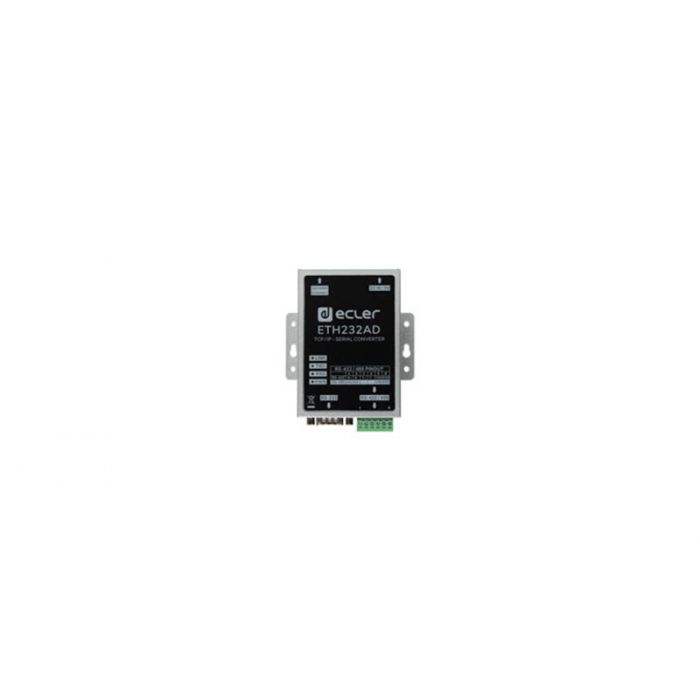

Ecler ETH232AD

Ecler ETH232AD is a serial interface that allows bidirectional transparent transmission between RS-232/422/485 and Ethernet. It includes a setting webpage for Ethernet and Serial customized settings. Along with ENM software, it represents a very versatile and cost effective serial interface controlled by customized user panels (UCP).
Less information
Sendet CEC- und RS-232-Befehle zur Bildschirm-Steuerung

Required DC supply 9-24VDC
Power 9VDC 1A
Mains 100-240AC 50-60Hz (using supplied DC adapter)
Connection type Serial: RS-232 DB-9 Male | RS-485 6-pin Euroblock Network: 8-pin RJ-45
Accessories included 9VDC 1A Power Supply | 6 pin Euroblock Connector
Comunication Interfaces TCP/IP | Serial
Features Web browser configuration
Dimensions WxHxD Without ears: 100 x 67 x 26mm (3.94'' x 2.64'' x 1.02'') With ears: 100 x 86 x 26 mm (3.94'' x 3.39'' x 1.02'')
Weight 0.5kg / 1.10 lb.
Key Features

3-in-1 RS-232/422/485 interface with 10/100 Mbps Ethernet port
Supports 4- and 2-wire RS-422 with built-in terminator
Supports 12-24 VDC power input
Euroblock connections for RS-422/485 and DB-9 connections for RS-232
Supports configuration via web browser
Supports configuration store and copy for easy deployment
Supports TCP Server/Client, UDP Server/Client operation modes
CE, FCC,RoHS

Applications


''¢ Retail
''¢ Hospitality
''¢ Education
''¢ Corporate
''¢ Sports & Wellness
''¢ Domotic Systems
''¢ Smart buildings
