Ecler DAM 614

Verfügbarkeit unbekannt

Bestellnr.
164766

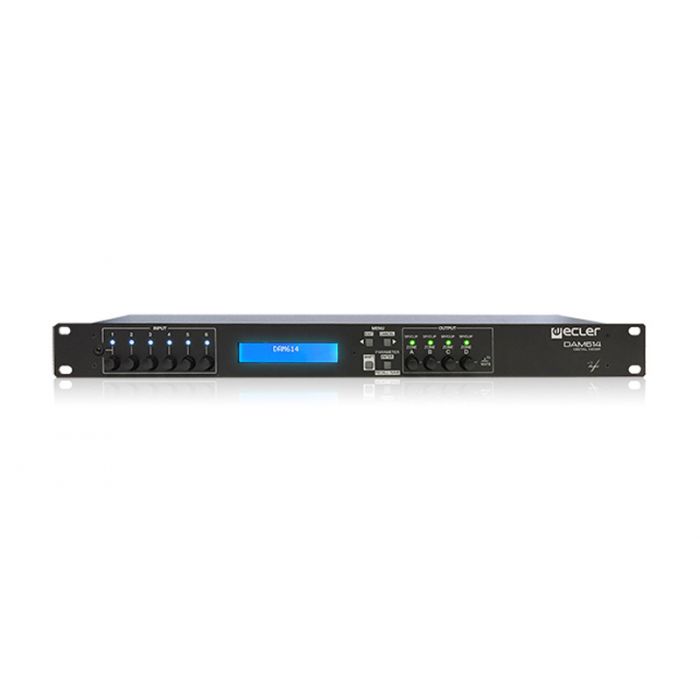

Digitaler Audio-Einbaumixer

ECLER DAM614 ist ein voll programmierbarer, digitaler Audiomixer. Er hat 6 Audioeingänge und 4 Audioausgänge mit individueller Auswahl und Pegeleinstellung der Ein- und Ausgänge am vorderen Bedienfeld, DSP, RS-232-Schnittstelle und 4 Anschlüsse zur Fernsteuerung, kompatibel mit den Wandkonsolen der WPm-Reihe (0-10VDC). Die 4 Ausgänge können im Monobetrieb oder paarweise im Stereobetrieb arbeiten. Zwei der Eingänge sind Stereo-Line-Eingänge, die anderen 4 sind Line-/Mikrofoneingänge (Phantomspeisung verfügbar), wobei auch die Möglichkeit besteht, sie als Monoeingänge oder paarweise als Stereoeingänge zu konfigurieren.

DAM614 is an audio digital mixer that comes after the great success of its predecessor, the DAM514, including more MIC/LINE inputs as well as many enhancements and new features. Thanks to all them, it becomes a perfect choice for both profiles of end users: the ones that feel comfortable with analogue, even old-school audio devices and their touch, and the ones that prefer the digital world. In both cases, DAM614 amazing processing power is still there.

It includes 6 audio inputs and 4 audio outputs, front panel inputs and outputs direct level controls, DSP processing, RS-232 connectivity and 4 REMOTE control ports (0-10VDC). Its 4 outputs can be used as mono independent zones or coupled as stereo zones. Regarding inputs, the first 2 are stereo LINE inputs, and the 3rd, 4th, 5th and 6th ones are MIC/LINE ready, being possible to use them independently (mono) or as stereo-coupled inputs.

Key features
•2 stereo LINE inputs, RCA terminals
•4 MIC/LINE inputs, balanced, Euroblock terminals. Can be configured to work independently (mono) or linked in couples to become a 3rd and/or a 4th stereo input
•4 balanced audio outputs, Euroblock terminals: each output can work in single mode (mono zone) or linked with another output to become a stereo zone (A&B / C&D couples)
•DSP @ 24 bits / 48kHz
•Front panel LCD display, 2x20 characters and 10 front panel LED indicators (one for each input and output)
•6 front panel input control digital knobs (one per input)
•4 front panel output control digital knobs (one per output)
•4 front panel keys, for parameters adjustment and menus navigation
•4 REMOTE ports (0-10 VDC), ready for inputs or outputs volume control, source selection, presets recovery, etc., using WPm series wall panels
•PAGER port for real-time voice paging, using an MPAGE4 console unit
•MUTE port for one or several zones muting via external contact closure
•RS-232 Interface with EclerCOMM free application (http://www.ecler.com/en/products/ software.html) and CA-NET protocol compatibility (third-party integration)
•Processing:
- Independent level control for each input and output
- Independent mixer for each output zone: a different combination of inputs and levels (a mix) can be adjusted for each of the 4 available outputs
- Independent 3 band tone control (BASS-MID-TREBLE) for each input
- Crossover filters available for each output
- Compressor / Limiter available for each output
- Independent 10 band graphic EQ for each output
- Independent and adjustable High-pass filter available for MIC/LINE inputs
- 2 level priority PAGER / DUCKER function (emergency, paging, message delivery, etc.), triggered by MIC/LINE inputs
- Independent Noise Gate function for MIC/LINE inputs
- Independent Feedback Suppressor Function (feedback loops, or Larssen effect) for MIC/LINE inputs
- Adjustable delay time for the outputs
•System templates to create new user configurations.
•20 user presets and system templates to create new user configurations
•Three password-protected front panel lock modes.


Applications
•A/V corporate, retail and education applications
•BGM & Paging solutions, with message priorities and source/volume independent selection
•Integration in installation global control systems
•Conferencing
•P.A. management (multi-way speaker processing, delay adjustment, etc.)


Accessories
•MPAGE4, paging station
•WPm series, wall panel controls

Mehr Informationen
Marke Ecler
