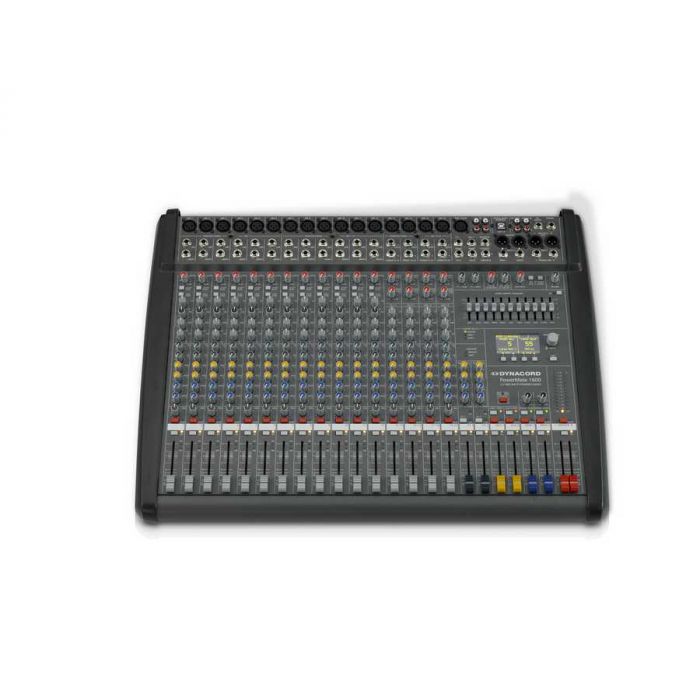

Dynacord Powermate 1600-3

Powermixer mit 12 Mic/Line + 4 Mic/Stereo Line Kanäle, 6 x AUX, Dual 24 bit Stereo Effects, USB-Audio Interface, 2x 1000 Watt

Spezifikationen

Channels (Mono + Stereo)
12 + 4
Auxiliaries (MON, FX, AUX)
2 Pre, 2 Post, 2 Pre/Post switchable
Maximum Midband Output Power,1 kHz, THD=1%, Dual Channel
into 2.66 Ohms
2 x 1350 W
into 4 Ohms
2 x 1000 W
into 8 Ohms
2 x 600 W
Rated Output Power,THD=0.1%, Single Channel
into 4 Ohms
2 x 900 W
into 8 Ohms
2 x 450 W
Maximum Output Voltage of power amplifier, no load
74 Vrms
THD at 1kHz, MBW=80kHz
MIC input to Master A L/R output, +16 dBu, typical
< 0.005%
POWER AMP INPUTS to Speaker L/R output
< 0.075%
DIM 30, power amplifier, 60Hz, 7kHz
< 0.05%
IMD-SMPTE, power amplifier, 60Hz, 7 kHz
< 0.015%
CMRR, MIC input, 1 kHz
> 80 dB
Equivalent Input Noise, MIC Input, A-weighted, 150 &ohm;
-130 dBu
Signal/Noise-Ratio, power amplifier, A-weighted, 4 Ohms
105 dB
Output Stage Topology, amplifier
Class D
Equalization
LO Shelving
+/- 15 dB / 60 Hz
MID Peaking, mono inputs
+/- 15 dB / 100 Hz .. 8 kHz
MID Peaking, stereo inputs
+/- 12 dB / 2.4 kHz
HI Shelving
+/- 15 dB / 12 kHz
Master EQ, 11-band (63, 125, 250, 400, 1k, 1.6k, 2.5k, 4k, 6.3k, 12k Hz)
+/- 10 dB / Q = 1.5-2.5
Filter
LO-CUT, mono inputs
f=80 Hz, 18 dB/oct
VOICE FILTER, mono inputs
FEEDBACK FILTER, MON1/2
70 Hz .. 7 kHz, Notch, -9 dB
Speaker Processing
LPN, switchable
Display
High Contrast OLED
Effects
Type
Dual stereo 24/48-bit multi effects processors
Effects presets
100 Factory + 20 User, Tap-Delay
Remote control
Footswitch, MIDI
Digital Audio Interface
Channels
4 In / 4 Out
AD/DA Conversion
24bit
Sampling Rate
44.1 / 48 / 88.2 /96 kHz
PC Interface
USB 2.0, Female Type B
MIDI Interface
5-pin DIN connector, In / Out
Output Power Control
Adjustale RMS Limiter
Protections
Mixer Outputs (Relay controlled)
MON1, MON2, MASTER A
Amplifier
Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-On-Delay
Switching Mode Power Supply (µPC controlled)
Inrush Current Limiters, Mains Over/Under Voltage, Mains Over Current, High Temperature
Cooling
Continuous speed controlled Fans
Phantom Power, switchable in groups
48V DC
Power Requirements (SMPS with auto range mains input)
100 V .. 240 V AC, 50 Hz .. 60 Hz
Power Consumption, at 1/8 maximum output power, 4 Ohms
450 W
Safety Class
1
Ambient Temperature Limits
+5 °C .. + 40 °C / 40 °F .. 105 °F
Dimensions (W x H x D), mm
with lid
663.5 x 164.5 x 498.5
Weight
Net weight, without lid
15.0 kg
Net Weight, with lid
17.0 kg
Shipping Weight
20.0 kg
Warranty
36 Months
Optional Accessories
Gooseneck Lamp, 12V/5W, 12", XLR 4 pol
F01U118983 (DC-LITLITE-4P)
FS11 (Footswitch with LED)
F01U100598 (DC-FS11)
Device in rated condition, Unity Gain (MIC Gain 20 dB), all faders position 0 dB, all pots in mid position, master fader +8dB, LPN +12dB, amplifier load 8 ohms, dual channel, Mains voltage 230V/50Hz or 120V/60Hz, unless otherwise specified.
