DPA d:dicate Supercardioid Mic Capsule

d:dicate Supercardioid Mic Capsule

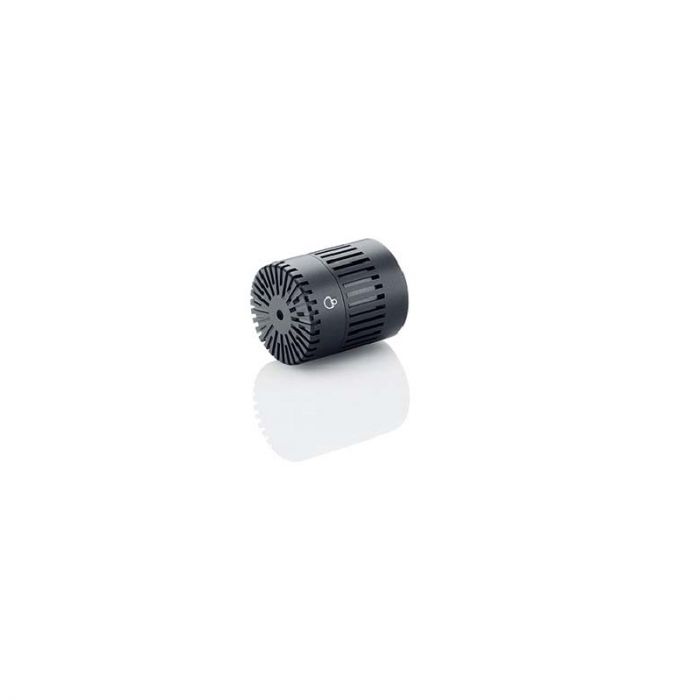

The MMC4018 Supercardioid Microphone Capsule is part of our selection of pencil microphones. The capsule has a highly directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response.

The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on this capsule. This makes it much more isolated without sudden frequency dependent peaks and dips.

Designed for a broad range of long-distance broadcast, ENG and film miking applications, such as booming, dialogue, interview and table or podium use, the MMC4018 Supercardioid Microphone Capsule offers superb flexibility through modular accessories. The mic is also ideal for use as a spot or hanging mic for orchestra recording situations.


A truly flexible range

The MMC4018 capsule is part of the flexible d:dicate™ Microphone Series. You can combine the capsule with any of the preamplifiers in the d:dicate™ Microphone Series to fit your specific needs.

Specifications:

- Directional patternSupercardioid
- Principle of operationPressure gradient
- Cartridge typePre-polarized condenser
- Frequency range20 Hz - 20 kHz
- Frequency range, ±2 dB, at 30 cm (11.8 in)40 Hz - 18 kHz
- Sensitivity, nominal, ±2 dB at 1 kHz12 mV/Pa; -38.4 dB re. 1 V/Pa
- Equivalent noise level, A-weightedTyp. 16 dB(A) re. 20 µPa (max. 19 dB(A))
- Equivalent noise level, ITU-R BS.468-4Typ. 23 dB
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)Typ. 78 dB(A)
- ColorMatte black
- Weight18 g (0.6 oz)
- Microphone diameter19 mm (0.75 in)
- Capsule diameter19 mm (0.75 in)
- Microphone length23 mm (0.9 in)
- Temperature range-40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH)Up to 90%
- Matching tolerance (frequency response and sensitivity)±1 dB
- Phase deviation for kit< 10°
