DPA d:dicate 4006ES Omni Mic, Side Cable, XLR

Verfügbarkeit unbekannt

Bestellnr.
161704

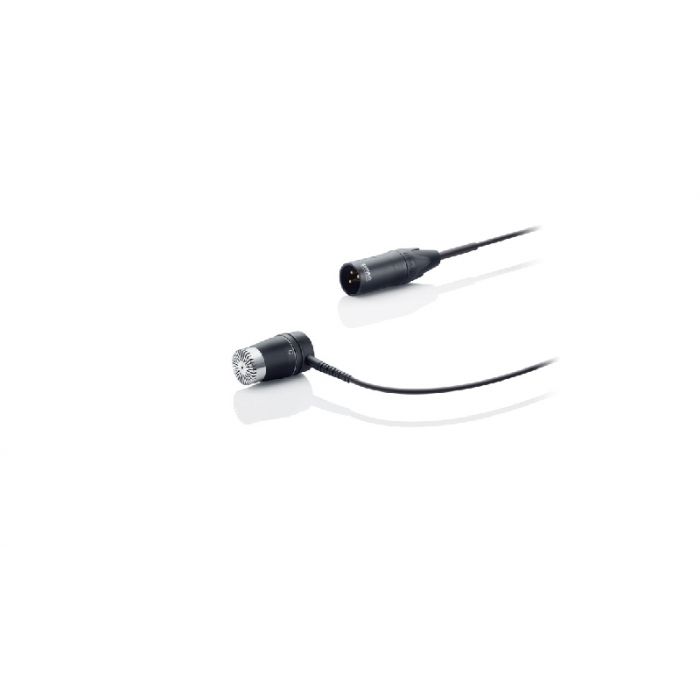

d:dicate 4006ES Omni Mic, Side Cable, XLR

Das d:dicate™ 4006 Mikrofon mit Kugelcharakteristik bietet in jeder Aufnahmesituation vollständige Transparenz. Es erfasst unglaubliche Details und eine fantastische Klangfülle. Die Auflösung seiner Hochfrequenz-Charakteristika über ein breites Spektrum von Instrumenten hinweg ist beeindruckend. Es bietet natürlichen Klang, hohe Empfindlichkeit, geringes Grundrauschen und einen linearen Frequenzgang von 10 Hz bis 20 kHz (±2 dB).

Dieses Mikrofon ist linear und ehrlich. Es hat sich weltweit den Status als Aufnahmestandard erworben und ist das beliebteste Mikrofon unserer d:dicate™ Aufnahme-Mikrofone. Dieses sehr beliebte Mikrofon hat seinen beneidenswerten Ruf über die letzten 25 Jahre aufgebaut, indem es wiederholt seine absolute Transparenz in jeglicher Aufnahmesituation zur Schau stellen konnte

Features:

- Akustische Authentizität
- Linear über eine große Frequenzbandbreite
- Detaillierte und natürliche Wiedergabe
- Hohe Empfindlichkeit und geringes Grundrauschen
- Hervorragend für Konzerthallen und Stütz-Mikrofonie akustischer Instrumente
- Modulare Flexibilität

Technische Daten 4066:

- Directional pattern Cardioid
- Principle of operation Pressure gradient, with interference tube
- Cartridge type Pre-polarized condenser, Twin Diaphragm Capsule
- Frequency range 20 Hz - 20 kHz
- Frequency range, ±2 dB, at 30 cm (11.8 in) 50 Hz - 17 kHz with 3 dB soft boost at 12 kHz
- Sensitivity, nominal, ±2 dB at 1 kHz 10 mV/Pa; -40 dB re. 1 V/Pa
- Equivalent noise level, A-weighted Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A))
- Equivalent noise level, ITU-R BS.468-4 Typ. 33 dB (max. 36 dB)
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 74 dB(A)
- Total harmonic distortion (THD) < 1% up to 137 dB SPL peak
- Dynamic range Typ. 117 dB
- Max. SPL, peak before clipping 153 dB
- Switchable attenuator, filters etc. 0 dB / -20 dB
- Output impedance 200 ?
- Minimum load impedance 2 k?
- Cable drive capability 100 m (328 ft)
- Output balance principle Impedance balancing with Active Drive
- Common mode rejection ratio (CMRR) > 60 dB
- Power supply (for full performance) 48 V Phantom power (± 4 V)
- Current consumption 2.8 mA
- Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
- Color Matte black
- Weight 164 g (5.8 oz)
- Microphone diameter 19 mm (0.75 in)
- Microphone length 198 mm (7.8 in)
- Maximum output voltage, RMS > 5 V
- Polarity +V at pin 2 for positive sound pressure
- Temperature range -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH) Up to 90%







Mehr Informationen
EAN 5713055007485
Marke DPA
