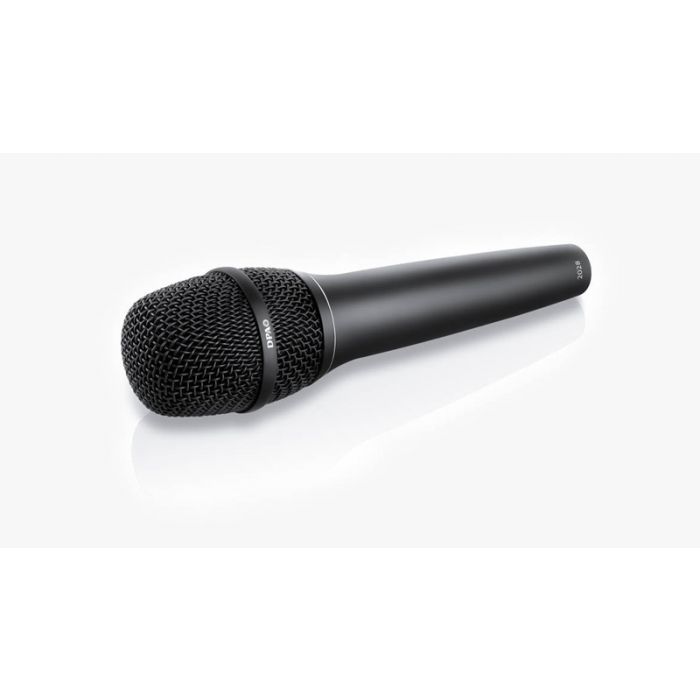

DPA 2028 Supercardioid Vocal Mic, SE2 Adapter (Sennheiser 2000/6000/9000/evolution/D1), Black

Verfügbarkeit unbekannt

Bestellnr.
184997

Vocal-Mikrofon

SE2-Adapter (Sennheiser 2000 / 6000 / 9000 / Evolution / D1)

Directional pattern
Supercardioid

Principle of operation
Pressure gradient

Cartridge type
Pre-polarized condenser

Effective frequency response
20 Hz - 20 kHz

Frequency range, ±2 dB, at 12 cm (4.7 in)
100 Hz - 16 kHz with 3 dB soft boost at 12 kHz. Permanent 3rd order low-cut filter at 80 Hz
Sensitivity, nominal, ±2 dB at 1 kHz
5 mV/Pa; -46 dB re. 1 V/Pa

Equivalent noise level, A-weighted
Typ. 19 dB(A) re. 20 µPa (max. 21 dB(A))

Distortion, THD < 1%
136 dB SPL RMS, 139 dB SPL peak

Dynamic range
Typ. 120 dB

Max. SPL, THD 10%
160 dB SPL peak

Rated output impedance
100 Ω

Minimum load impedance
1 kΩ

Cable drive capability
100 m (328 ft)

Output balance principle
Impedance balancing with Active Drive
Common mode rejection ratio (CMRR)
> 50 dB at 1 kHz
Power supply (for full performance)
48 V Phantom power (± 4 V)
Current consumption
Max. 2 mA
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color
Matte black
Weight
309 g (10.9 oz)
Microphone diameter
52 mm (2.05 in)
Capsule diameter
19 mm (0.75 in)
Microphone length
205 mm (8.1 in)
Maximum output voltage, RMS
8 V
Polarity
+V at pin 2 for positive sound pressure
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%

Mehr Informationen
EAN 5713055019914
Marke DPA
