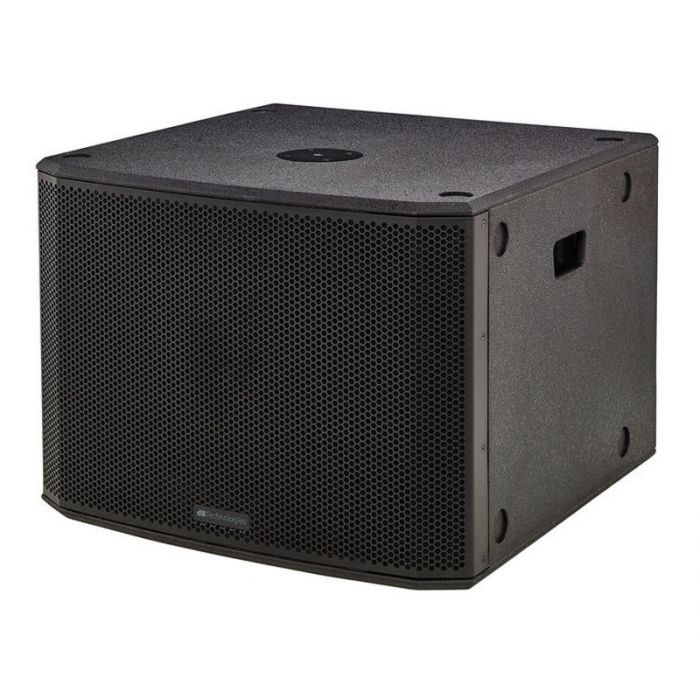

dB Technologies LVX PSW15
Verfügbarkeit unbekannt
Born as an evolution of wooden LVX active series, the new LVX P family moves into the installation world with a passive selection of cabinets where a clean, essential design merges with a very detailed and coherent audio performance.
Features
Passive Subwoofer
1000 W peak at 8 Ω
130dB max SPL
Vertical or Horizontal use
2xPole mounts
Available in black or white version
LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.
Passive subwoofer LVX PSW15 has been designed to render low end frequencies in small to medium-sized LVX P PA or fixed installations.
The system is able to provide 1000 W power at 8 Ohms for a maximum of 130 dB SPL.
The solid plywood enclosures features a clean, install-friendly design featuring 1 integrated handle per side and 2X36 mm pole mount plates (one on top and one on side), so that the sub can be easily used vertically or horizontally.
All enclosures and accessories of LVX P series are available in black or white version.
Technische Daten
Speaker Type
Passive Subwoofer
Akustische Daten
Power Peak
1000 W
Impedance
8 Ohms
Frequency Response [- 10dB]
36 - 250 Hz
Max SPL
130 dB
LF
15"
Voice Coil LF
3"
Eingang
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanik
Housing
Plywood
Pole mount
2xM20
Handles
2 (1x side)
Width
620 mm (24.4 in)
Height
450 mm (17.71 in)
Depth
620 mm (24.4 in)
Weight
26.7 kg (58.8 lbs)
| EAN | 8054317630377 |
|---|---|
| Marke | db Technologies |
