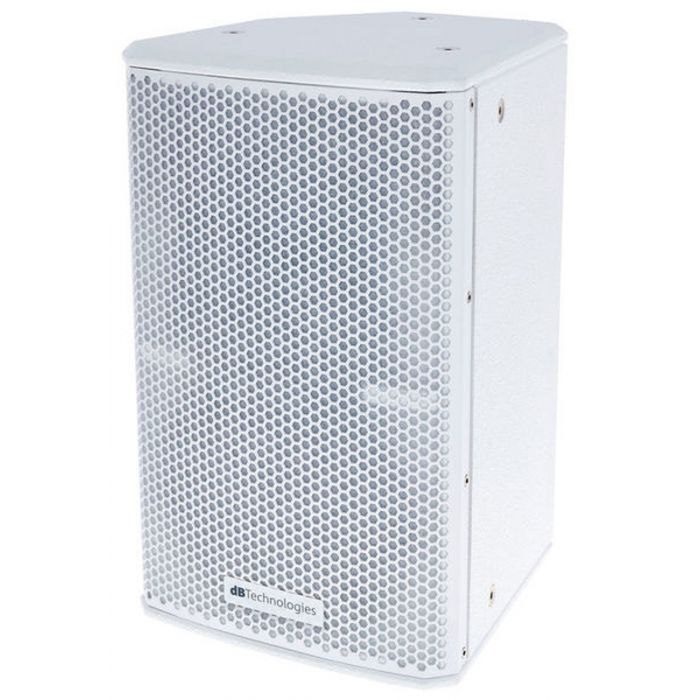

dB Technologies LVX P8 WHITE

Verfügbarkeit unbekannt

Bestellnr.
184672

Born as an evolution of wooden LVX active series, the new LVX P family moves into the installation world with a passive selection of cabinets where a clean, essential design merges with a very detailed and coherent audio performance.

Features
Clean design
Available in black or white
M8-thread rigging points
Rotatable horn for vertical or horizontal use
Wooden lightweight enclosure


LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.
Full range LVX P8 provides a 90°x70° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.
The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated vertical (WB-LP10H or horizontal brackets (VB-LP810V).
The cabinet features an integrated handle on back side and a 36 mm pole mount plate.
All enclosures and accessories of LVX P series are available in black or white version.


Technische Daten
Speaker Type
2-Way Passive Speaker
Akustische Daten
Peak Power
400 W
Impedance
8 Ohms
Frequency Response [- 10 dB]
74 - 18.000 Hz
Max SPL
122 dB
HF
1 “, 1" v.c.
Directivity
90x70°
Horn
Rotatable
LF
8 “, 1.5" v.c.
Eingang
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanik
Housing
Plywood
Pole Mount
36 mm
Angle Up
Monitor use 40°
Rigging Points
12 x M8
Handles
1 on back side
Width
255 mm (10.03 in)
Height
426 mm (16.77 in)
Depth
258 mm (10.15 in)
Weight
8.1 kg (17.8 lbs)

Mehr Informationen
EAN 8054317631220
Marke db Technologies
