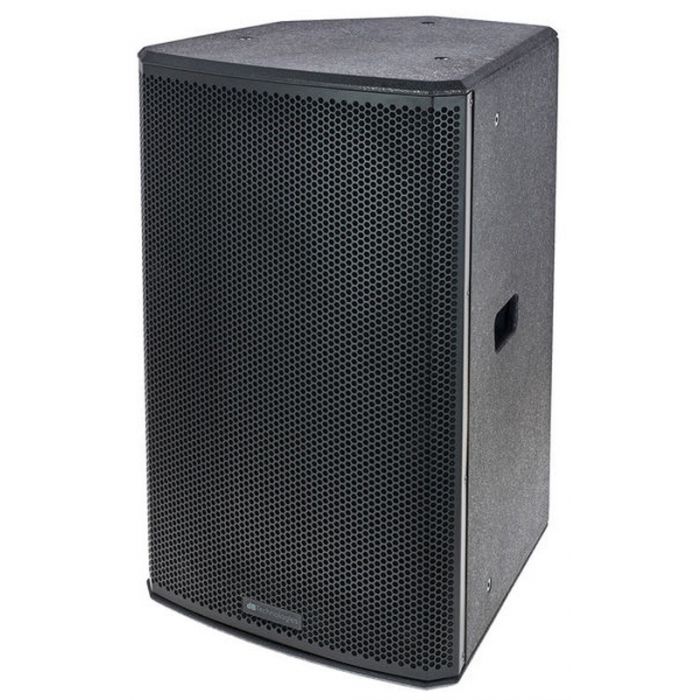

dB Technologies LVX P15
Verfügbarkeit unbekannt
Born as an evolution of wooden LVX active series, the new LVX P family moves into the installation world with a passive selection of cabinets where a clean, essential design merges with a very detailed and coherent audio performance.
Features
Clean design
Available in black or white
M8-thread rigging points
Rotatable horn for vertical or horizontal use
Wooden lightweight enclosure
LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.
Full range LVX P15 provides a 90°x60° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.
The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated vertical (WB-LP15H or horizontal brackets (VB-LP1215V).
The cabinet features 1 integrated handle per side and a 36 mm pole mount plate.
All enclosures and accessories of LVX P series are available in black or white version.
Technische Daten
Speaker Type
2-Way Passive Speaker
Akustische Daten
Peak Power
800 W
Impedance
8 Ohms
Frequency Response [- 10 dB]
58- 21.000 Hz
Max SPL
129 dB
HF
1 “, 1.35" v.c.
Directivity
90x60°
Horn
Rotatable
LF
15“, 2.5" v.c.
Eingang
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanik
Housing
Plywood
Pole Mount
36 mm
Angle Up
Monitor use 40°
Rigging Points
12 x M8
Handles
2 (1X side)
Width
420 mm (16.53 in)
Height
680 mm (26.77 in)
Depth
430 mm (16.92 in)
Weight
19.7 kg (43.4 lbs)
| EAN | 8054317630360 |
|---|---|
| Marke | db Technologies |
