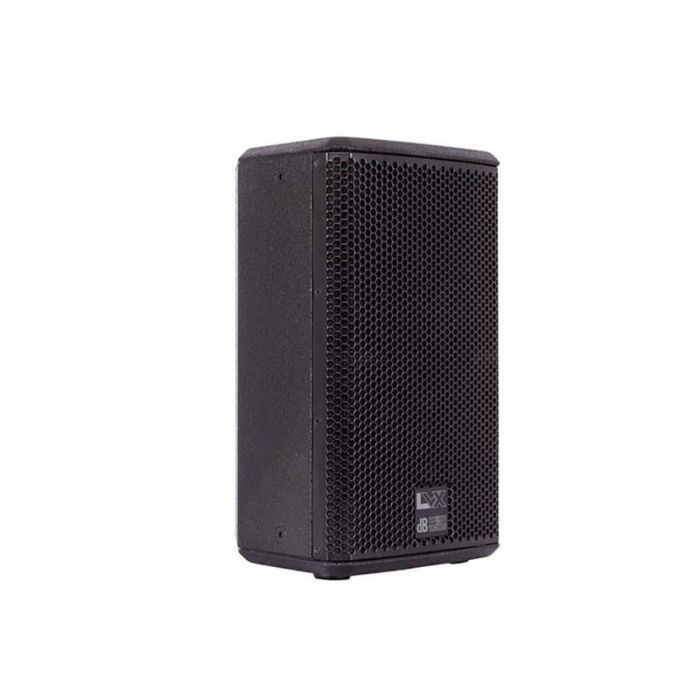

dB Technologies LVX 8

Technical Data

Speaker Type : 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]: 65 - 20.000 Hz
Frequency Response [-6dB]: 80 - 19.000 Hz
Max SPL: 121 dB
HF: 1"
Directivity: 90 x 70°
Horn: Rotatable CD Horn
LF: 8"
Amplifier
Amp Technology: Digipro® G2
Amp Class: Class-D
PRG Power: 400 W
Peak Power: 800W
Processor
Controller: DSP 24bit/48kHz
System Presets: Flat, Processed
Limiter: Dual Active Peak, RMS, Thermal
Crossover Frequency LF-HF: 2050 Hz
Slope LF-HF: 24 dB/Octave
Input
Mechanics
Housing: Multiplex
Angles Up: Monitor use 40°
Handles: 1x top side, recessed
Rigging points: 10 x M8
Pole Mount: D36 mm
Width: 260 mm (10.24 in)
Height: 420 mm (16.54 in)
Depth: 260 mm (10.24 in)
Weight: 10.1 kg (22.27 lbs)
