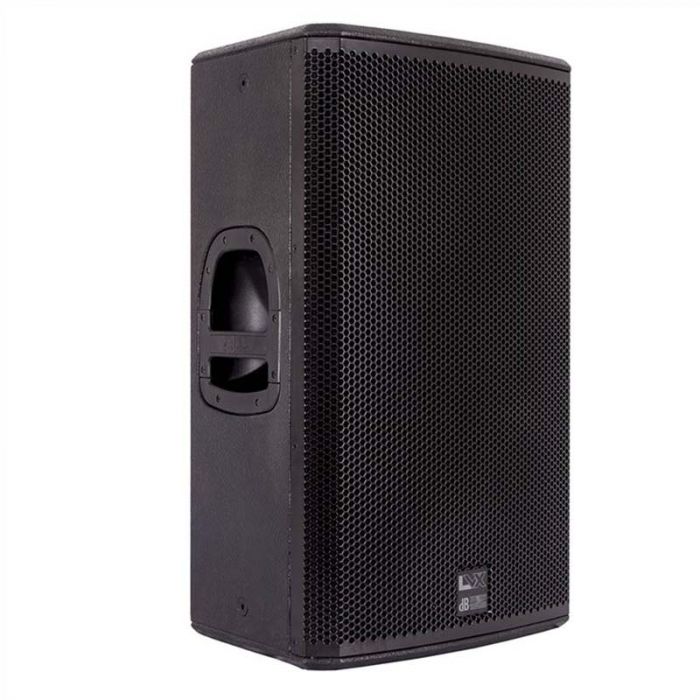

dB Technologies LVX 15

Technical Data

Speaker Type : 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]: 49 - 20.000 Hz
Frequency Response [-6dB]: 54 - 19.000 Hz
Max SPL: 128 dB
HF: 1"
Directivity: 90 x 40°
Horn: Rotatable CD Horn
LF: 15"
Amplifier
Amp Technology: Digipro® G2
Amp Class: Class-D
PRG Power: 800 W
Peak Power: 1600 W
Processor
Controller: DSP 24bit/48kHz
System Presets: Flat, Processed
Limiter: Dual Active Peak, RMS, Thermal
Crossover Frequency LF-HF: 1800 Hz
Slope LF-HF: 24 dB/Octave
Input
Mechanics
Housing: Multiplex
Angles Up: Monitor use 45°
Handles: 3 (1x top side, 1x side)
Rigging points: 12 x M10
Pole mount: D36 mm
Width: 430 mm (16.93 in)
Height: 680 mm (26.77 in)
Depth: 430 mm (16.93 in)
Weight: 20.7 kg (45.64 lbs)
