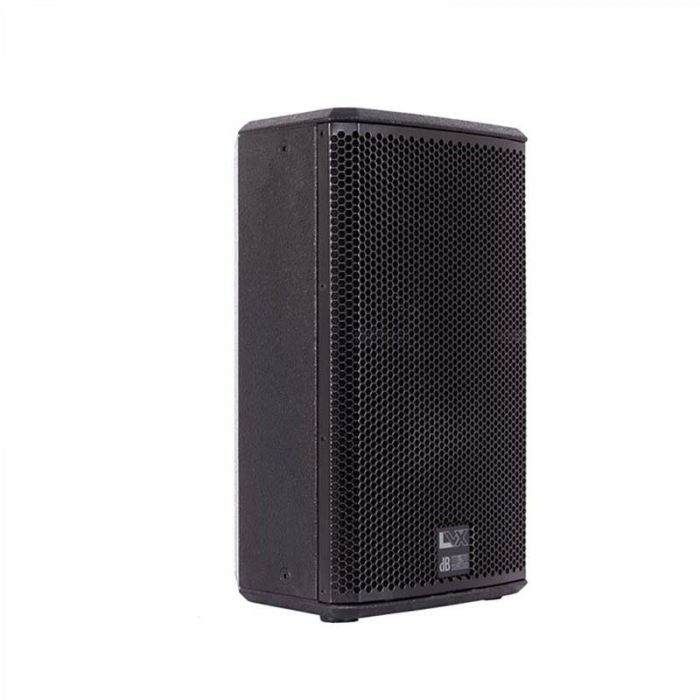

dB Technologies LVX 10

Technical Data

Speaker Type : 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]: 60 - 20.000 Hz
Frequency Response [-6dB]: 70 - 19.000 Hz
Max SPL: 125 dB
HF: 1"
Directivity: 90 x 70°
Horn: Rotatable CD Horn
LF: 10"
Amplifier
Amp Technology: Digipro® G2
Amp Class: Class-D
PRG Power: 400 W
Peak Power: 800 W
Processor
Controller: DSP 24bit/48kHz
System Presets: Flat, Processed
Limiter: Dual Active Peak, RMS, Thermal
Crossover Frequency LF-HF: 2050 Hz
Slope LF-HF: 24 dB/Octave
Input
Mechanics
Housing: Multiplex
Angles Up: Monitor use 40°
Handles: 1x top side
Rigging points: 12 x M8
Pole Mount: D36 mm
Width: 300 mm (11.8 in)
Height: 480 mm (18.9 in)
Depth: 300 mm (11.8 in)
Weight: 13.5 kg (29.76 lbs)
