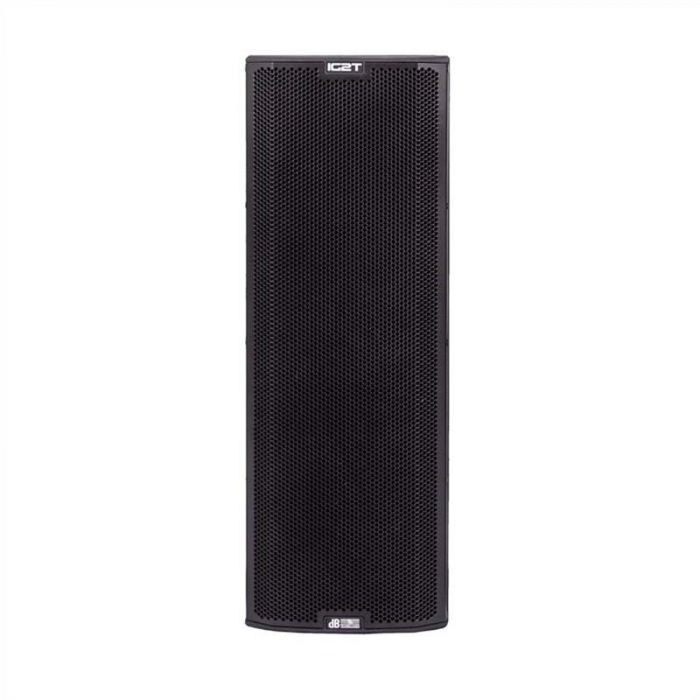

dB Technologies Ingenia IG2T

Technical Data
Speaker Type : 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]: 59- 20.000 Hz
Frequency Response [-6dB]: 63- 19.200 Hz
Max SPL: 128 dB
HF: 1"
HF Voice Coil: 1.4"
Directivity (HxV): 100 x 80° (+15°/- 65°)
HF Type: Neodymium compression driver
Horn: Vertical asymmetric
Crossover Frequency: 1900 Hz
LF: 2x8”
LF Voice Coil: 2"
LF Type: Neodymium
Amplifier
Amp Technology: Digipro® G3
Amp Class: Class-D
RMS Power: 400 W
Peak Power: 800 W
User Interface: OLED display + rotative knob w/switch
Self-rotating display: Yes
Positioning: EPD (Element Position Detection)
Display Mirroring: Yes
Processor
Controller: DSP 56 bit
AD/DA Converter: 24bit/48kHz
System Presets: Factory presets + User defined
Limiter: Dual Active Peak, RMS, Thermal
Input
Signal Input: 1 x Combo IN (XLR + Jack 6.3mm)
Signal Out: 1 x XLR link OUT
USB connector: Yes - mini USB
Mechanics
Housing: Polypropylene PP reinforced
Grille: FULL /Invisible screws
Flyable: Yes
Handles: 1x on top / 1x on bottom
Pole Mount: Yes
Width: 228 mm (8.98 in)
Height: 646 mm (25.43 in)
Depth: 315 mm (12.40 in)
Weight: 12.8Kg (28.22 lbs.)
