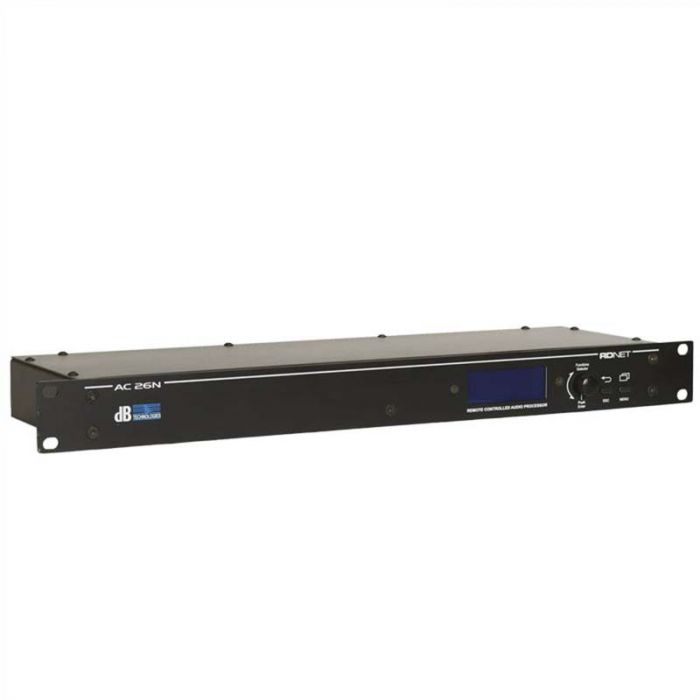

dB Technologies AC 26N

Verfügbarkeit unbekannt

Bestellnr.
166521

Digital-Prozessor

The new audio digital processor AC26N allows you to control any professional audio system, both active and passive.


Equipped with two inputs and six outputs balanced analogically, two in/out digital AES/EBU and an RDNet control, this processor allows a perfect control in a simple and complete way.

Each outputs possesses a parametric equalizer, delay, phase and level control, completely run by a powerful 28/56 Bit DSP, unique in its kind.

This processors control may be directed by the front control panel or through an RDNet connected computer.General Features:
2x XLR Balanced analog inputs
6x XLR Balanced analog outputs
2 channels AES/EBU digital input with SRC (XLR connector)
2 channels AES/EBU digital ouputs (XLR connector)
Full range power supply
RDNet Hardware Interface
USB Interface
Remotable via RDNet or USB using dBtechnologies software
Clean and Easy to use user interface on front panel

Processing Algorithms:
Inputs/outputs audio matrix
12 Double Precision PEQs filters for each I/O
Dynamic Range Control for each I/O (Compressor, Limiter, Noise gate)
Crossover (HPF/LPF 12/24/48dB slope)
Delay up to 340mS (or 100m) at 48Khz for each output
Gain / mute audio controls for each I/O
Up to 32 user defined Presets storage (save/store/recall functions)

Mehr Informationen
EAN 8058159115221
Marke db Technologies
