Dateq SPL-D2 MK2 & SPL5-MIC

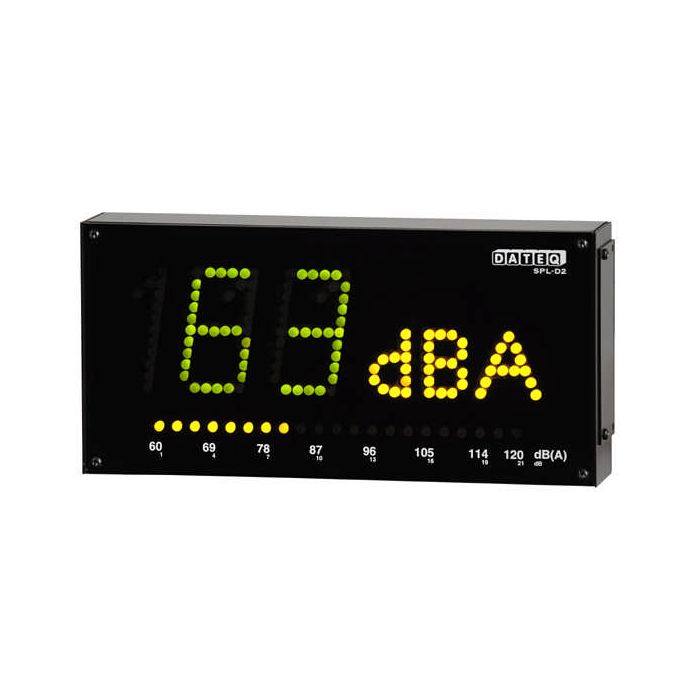

The SPL-D2 is a sound-level display unit. This unit can be used as a stand-alone device, or it can be connected to the SPL5 limiter. The display is built-up with hi-efficiency bi-color LEDs, so that it is clearly readable from a distance.

When connected to the SPL5 the display value is read from the SPL5 limiter. The bar can be used as a soundlevel indication bar, or as an attenuation bar.

When used as a stand-alone unit the optional measuring microphone must be connected. The display shows the actual measured value. When the value crosses the pre-defined level the display color switches from green to red. This can be used as an indication for a live-band. When using a measuring microphone three measuring curves can be selected:

ANSI-A
ANSI-B
ANSI-C
To change these settings the SPL-D2 uses the same PC-software as the SPL5.

Features

SPL-D2:
- Large, clearly readable digits
- Can be used standalone, or as an extension of the SPL5
- Display is automatically dimmed in a dark environment
- Display-color changes when the threshold is passed

Software:
- Compatible with Windows 98, ME, 2000, XP
- Controllable over the Internet
- Display intensity can be adjusted
- Adjustable threshold
- Microphone sensitivity can be adjusted
