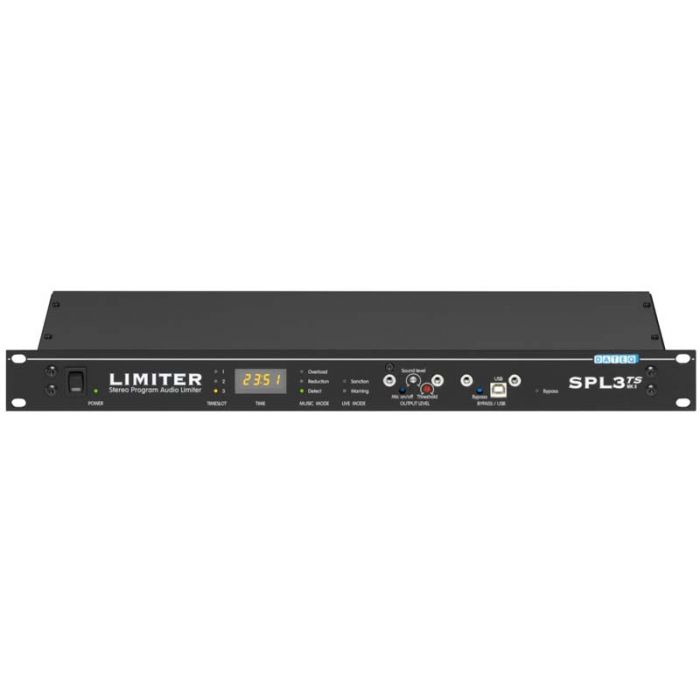

Dateq SPL-3 TS MK2

The SPL3 works just like the SPL2: the microcontroller continuously measures the input-level and attenuates the output level as much as necessary to keep the sound level below the given threshold.

But the SPL3 has another feature. A measuring microphone is connected so that it has the possibility to measure the audio-level from live-bands etc. This measuring microphone makes the SPL3 the ideal limiter for live performances where the band uses its own PA system. When, in live mode, the sound-level exceeds the threshold, the limiter can give a warning to the band (with a flashing light). If the sound-level remains too loud for a longer period of time the limiter will activate the sanction output and can, if desired, cut-off the mains supply of the band.

The SPL3TS has a built in clock/ timer. This makes it possible to program a completely different sound level at different periods of the day. The built in calendar allows you to program a list of 20 dates to switch the limiter to bypass automatically. All these settings can be adjusted by using the PC-software.

Technical specifications

INPUTS
MIC (measuring microphone) ........................... XLR-3 female, electronically balanced, use only the supplied microphone
LINE (left & right) ............................................... XLR-3 female, electronically balanced
Signal level............................................... -14 .. +6 dBu
Input impedance ...................................... 10 kW

OUTPUTS
LINE (left & right) ............................................... XLR-3 male, electronically balanced
Output impedance...................................600 W

AUDIO
Frequency response................................ 20 Hz .. 20 kHz
Signal/noise ratio ..................................... > 80 dB
THD+N..................................................... < 0.05 %

LIMITING
Limiter threshold (adjustable) .................. -14 .. +6 dBu (without measuring microphone)
Limiter threshold (adjustable) .................. 80 .. 120 dBA (with measuring microphone)
Output reduction (adjustable) .................. 0 .. -40 dB (without measuring microphone)

EXTERNAL SIGNALLING
External attenuation ................................. 0 .. -20 dB (10 kW variable resistor)
Signalling- and switch outputs................. 20 V / 10 mA DC

POWER SUPPLY
Supply voltage.......................................... 220...240 VAC / 50 Hz
Power consumption.................................10 W (SPL2 / SPL3), 20 W (SPL2TS / SPL3TS)

SIZE AND WEIGHT
Front......................................................... 483 x 45 mm (B x H) = 19”, 1HE
Depth .......................................................175 mm
Weight (net.) ............................................ 3.2 kg (SPL2 / SPL3), 3.5 kg (SPL2TS / SPL3TS)
