Cloud CDR-1-W

The CDR-1 is the surface-mount version of wall remote control for use with the DCM-1 and DCM1e Digital Control Mixer. The CDR-1 is fitted with the same alphanumeric display as the DCM-1, with menu navigation being by five push buttons. When installed in one of the DCM-1's zones, it provides the user and installer with more convenient and practical control of system in addition to the DCM-1's front panel.

A zone may have one CDR1 (or CDR1F), more than one, or none at all. Functions include selection of audio source and control of audio level; additionally, any enabled zone groups of which the zone is a member may be activated locally.

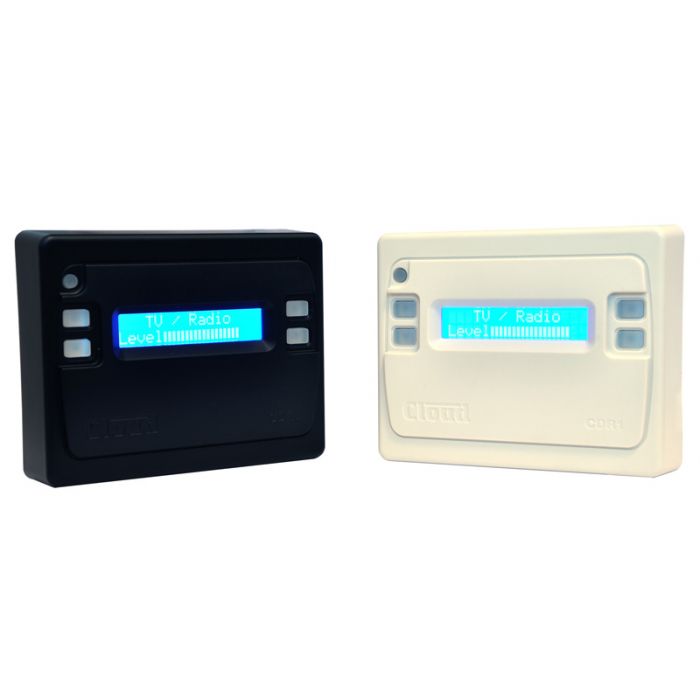

CDR-1W (White) CDR-1B (Black)
Enables remote control of Cloud's DCM-1 Digitally Controlled Mixer
Simple to install - connects to DCM-1 and other CDR1/1F's using standard CAT-5 cable
Can be interconnected using a wide choice of wiring topologies
Choice of two mounting styles to suit installation
Backlit 2-row x 16 character dot matrix alphanumeric display
User accessible functions:
Source selection
Level control
Group enable/disable
Engineer mode functions (password enabled):
Local zone EQ adjustment
Installer mode (Enabled by internal jumper):
Zone assignment
Password setting
Display adjustment
Inactivity time (time for which display backlight remains lit after a button is pressed)
