Caymon WPR609R/B

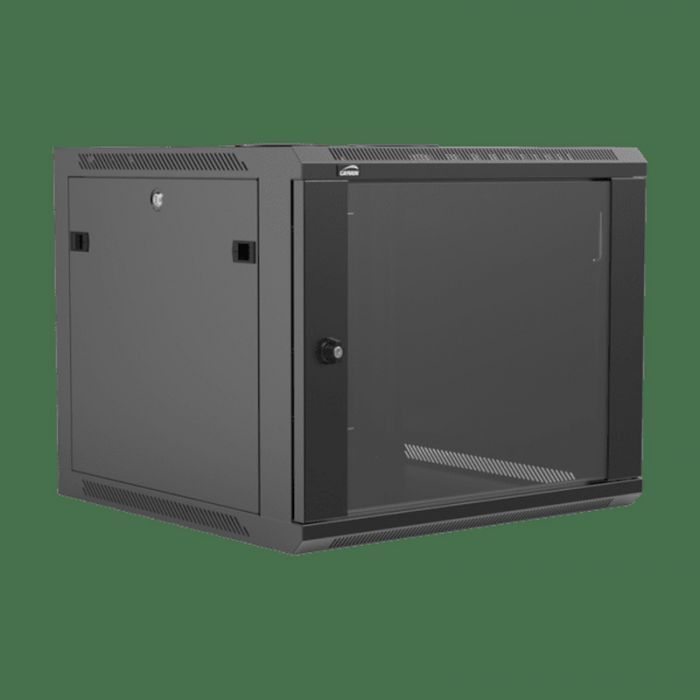

The WPR609 is a professional 19” wall mount metal rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. It is a solid construction with a cold-rolled steel 1,5 mm thick frame and 1,2 mm thick plates. The WPR609 comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure easy fitting of the equipment.

The tempered smokey grey glass door is fitted with a key lock to keep the equipment only accessible for authorized persons. The removable sides and back panel allow easy installing and cabling of the equipment while the in depth adjustable 19” profiles provide great flexibility for installing equipment depending on its depth.

Product features
Dimensions 600 x 501 x 600 mm (W x H x D)
Unit height 9 HE
Weight 27 kg
Colours Black (RAL9004)
Max. load 60 kg
Max. usable depth 560 mm
Accessories Included 10 x Cage nuts + screws
2 x key for front door
4 x Key for sidepanel lock
1 x Allen key
1 x WPR60LR
Optional KM600 - M6 Cage nuts
KS600 - M6 x 16 mm bolt DIN7985 Black
WPR10RF - Roof fan 120x120 mm
SPR10DC - Dust cover brush
WPR60FS - Fixed shelf
SS160 - Sliding shelf
