Caymon WPR406R/B

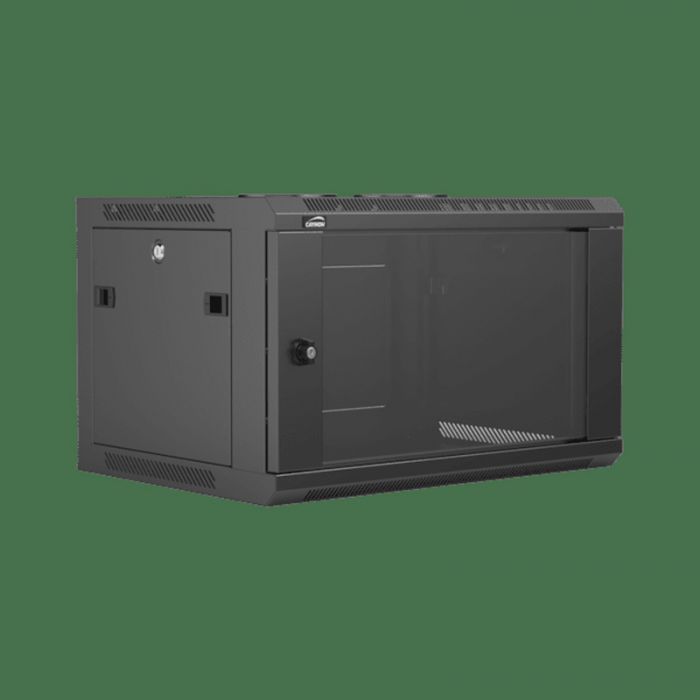

The WPR406R is a professional 19” wall mount metal rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. It is a solid construction with a cold rolled steel 1,5 mm thick frame and 1,2 mm thick plates. The WPR406R comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure easy fitting of the equipment. The tempered smokey grey glass door is fitted with a keylock to keep the equipment only accessible for authorized persons. The removable sides and back panel allow easy installing and cabling of the equipment while the in depth adjustable 19” profiles provide great flexibility for installing equipment depending on its depth.

Product features
Dimensions 600 x 368 x 450 mm (W x H x D)
Unit height 6 HE
Max. usable depth 410 mm
Max. load 60 kg
Weight 18.5 kg
Colours Black (RAL9004)
White (RAL9003)
Accessories Included 2 x key for front door
4 x Key for sidepanel lock
10 x Cage nuts + screws
1 x Allen key
1 x WPR45LR
Optional WPR45FS - Fixed shelf
WPR45LR - L-Rail pair
WPR10RF - Roof fan 120x120 mm
SPR10DC - Dust cover brush
KM600 - M6 Cage nuts
KS600 - M6 x 16 mm bolt DIN7985 Black
SS160 - Sliding shelf
