Caymon TPR306A/B
19" 6HE Tischrack, Neigungswinkel 0-15 Grad einstellbar, schwarz

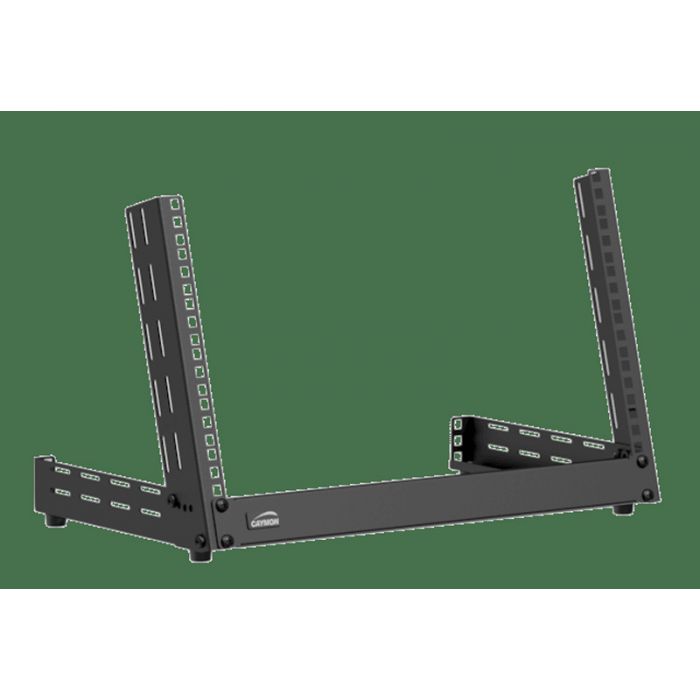

The TPR306A is a professional and solid constructed desktop rack with adjustable angle for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It ensures maximum installation, connectivity and maintenance ease while simultaneously storing up to 6 units for studio, processing, test and other 19” equipment. The 0° ~ 15° adjustable slanted front profiles offer optimal stability and a perfect viewing angle on the front panels of the installed equipment at any given time.
The construction is made of 2.0 mm thick steel finished in a black (RAL9004) powder coating with fine structure. Punched equipment mounting profiles on the front offer a multifunctional use of the rack while perforated sides allow cable guiding or accessories mounting. Delivered in a flat-down package, the simple structure allows assembly by a single person in record-breaking time.
Product features
Adjustable angle 0° - 15° adjustable tilt angle
Unit height 6 HE
Max. load 30 kg
Dimensions 509 x 317,8 x 301,3 mm (W x H x D) (incl. rubber feet)
Colours Black (RAL9004)
Accessories Included 1 set Assembly hardware
12 x Cage nuts + screws
Optional KM600 - M6 Cage nuts
| Marke | Caymon |
|---|
