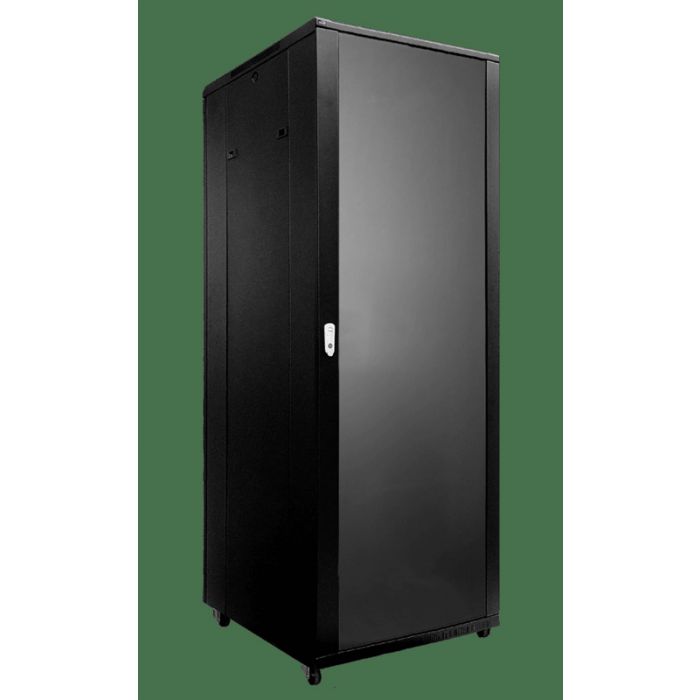

Caymon SPR8842/B

The SPR8842 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provide a solid and stable construction making it suitable for heavy equipment, storing up to 42 units inside. The SPR8842 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and levelling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibility for installing equipment depending on its depth.

The SPR8842 comes with a tempered glass front door and steel rear door. The swing handle with cylinder lock safely locks the equipment inside. The width of 800 mm offers additional space for the installation of accessories and cable management systems, while guaranteeing an optimal convenience for installation and maintenance of the equipment.

Product features
Unit height 42 HE
Colours Black (RAL9004)
Accessories Optional KS600 - M6 x 16 mm bolt DIN7985 Black
KM600 - M6 Cage nuts
SPR60LR - L-rail (horizontal support)
Included 4 x Key for sidepanel lock
1 x Allen key
1 x Levelling feet
4 x Key for front/back door
Max. usable depth 740 mm
Wheel Diameter 50 mm
Dimensions 800 x 1985 (2055) x 800 mm (W x H (incl. feet) x D)
Accessories Included 20 x KS600
20 x KM600
Optional SPR10CS - Rack interconnection slot
SPR80LR - L-Rail pair
SPR80FS - Fixed shelf
SPR80SS - Sliding shelf
SPR80RF - Cooling roof fan unit (230V)
Static load capacity (adjustable feet) 800 kg
Dynamic load capacity (transport castors) 400 kg
Weight 120 kg
