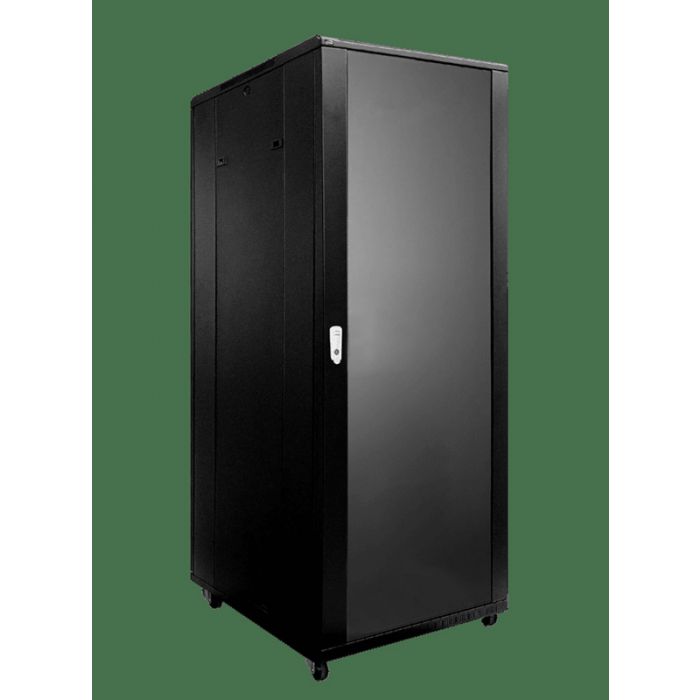

Caymon SPR832


19" Rack-Schrank mit Rollen, 32HE, 600x1610x800mm, 82kg, schwarz (RAL9004)

The SPR832 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provides a solid and stable construction making it suitable for heavy equipment, storing up to 32 units inside. The SPR832 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibilty for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.

Product features
Unit height 32 HE
Weight 84 kg
Colours Black (RAL9004)
Accessories Optional KS600 - M6 x 16 mm bolt DIN7985 Black
KM600 - M6 Cage nuts
SPR60LR - L-rail (horizontal support)
Included 4 x Key for sidepanel lock
1 x Allen key
4 x Levelling feet
4 x Key for front/back door
Max. usable depth 740 mm
Wheel Diameter 50 mm
Dimensions 600 x 1540 (1610) x 800 mm (W x H (incl. feet) x D)
Accessories Included 20 x KS600
20 x KM600
Optional SPR10CS - Rack interconnection slot
SPR80LR - L-Rail pair
SPR80FS - Fixed shelf
SPR80SS - Sliding shelf
SPR80PT - Rack plinth
Static load capacity (adjustable feet) 800 kg
Dynamic load capacity (transport castors) 400 kg

Mehr Informationen
Marke Caymon
