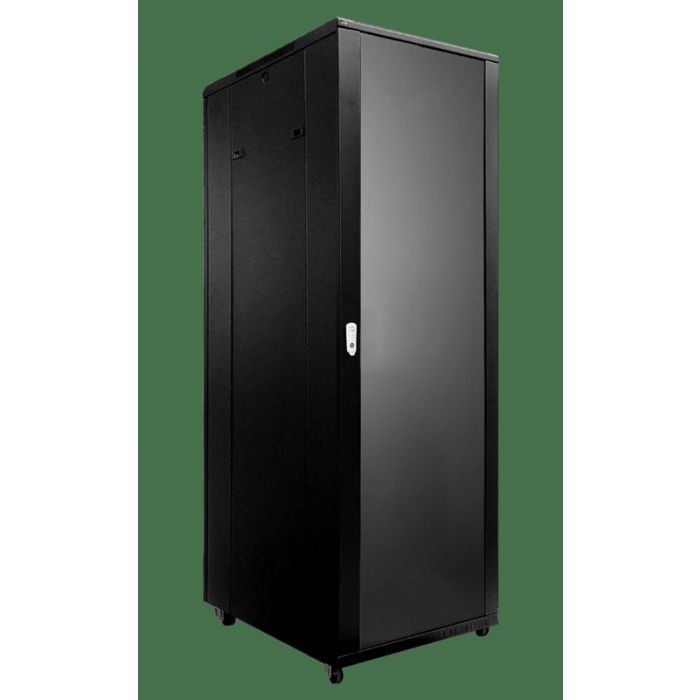

Caymon SPR1042


19" Rack-Schrank mit Rollen, 42HE, 600x2055x1000mm, 120kg, schwarz (RAL9004)

The SPR1042 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold-rolled steel 2 mm thick frame and 1,2 mm thick plates provide a solid and stable construction making it suitable for heavy equipment, storing up to 42 units inside. The SPR1042 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and levelling once correctly positioned.

The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19“ profiles provide great flexibility for installing equipment depending on its depth. Both front and rear doors are fitted with a standard key lock.

Product features
Unit height 42 HE
Weight 115 kg
Colours Black (RAL9004)
Max. usable depth 940 mm
Wheel Diameter 50 mm
Dimensions 600 x 1985 (2055) x 1000 mm (W x H (incl. feet) x D)
Accessories Included 4 x Key for sidepanel lock
1 x Allen key
4 x Levelling feet
4 x Key for front/back door
20 x KS600
20 x KM600
Optional KS600 - M6 x 16 mm bolt DIN7985 Black
KM600 - M6 Cage nuts
SPR10CS - Rack interconnection slot
Static load capacity (adjustable feet) 800 kg
Dynamic load capacity (transport castors) 400 kg
