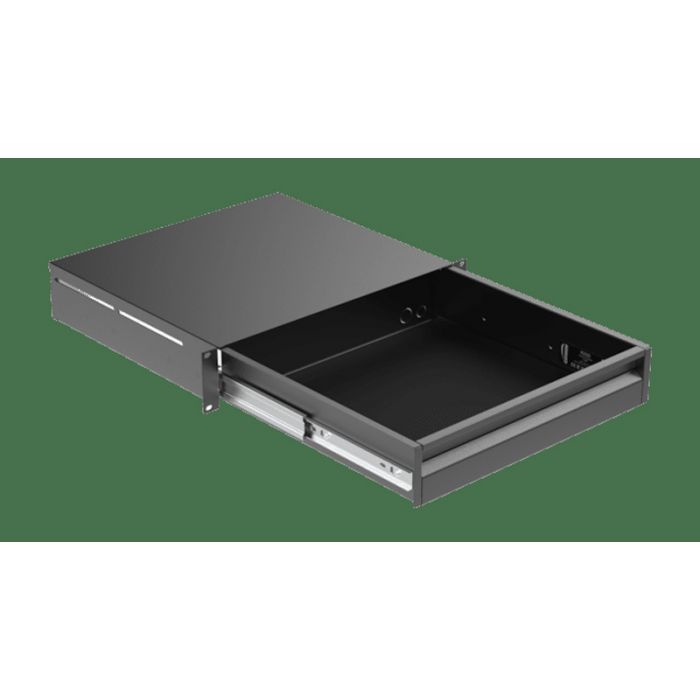

Caymon RD220/B


19" 2HE Rackschublade, 483x88x393mm BxHxT, schwarz

The RDx20x series of 19” rack drawers comes available in 1U, 2U and 3U unit heights with and without lock. The chassis is constructed of 1,5 mm thick cold rolled steel, while the tray is finished in 1,2 mm thick cold rolled steel. They feature full extension 3 section drawer rails, pushout holes on the back of the tray for cable insertion, a rubber anti slip liner, a full-width handle and optional back supports (RD2S) for increased load capacity (only 2U and 3U).

Product features
Dimensions 483 x 88.1 x 393 mm (W x H x D)
Inside 400.6 x 82.4 x 367.4 mm (W x H x D)
Weight 6.55 kg
Max. load 20 kg
40 kg (with back supports)

Mehr Informationen
Marke Caymon
