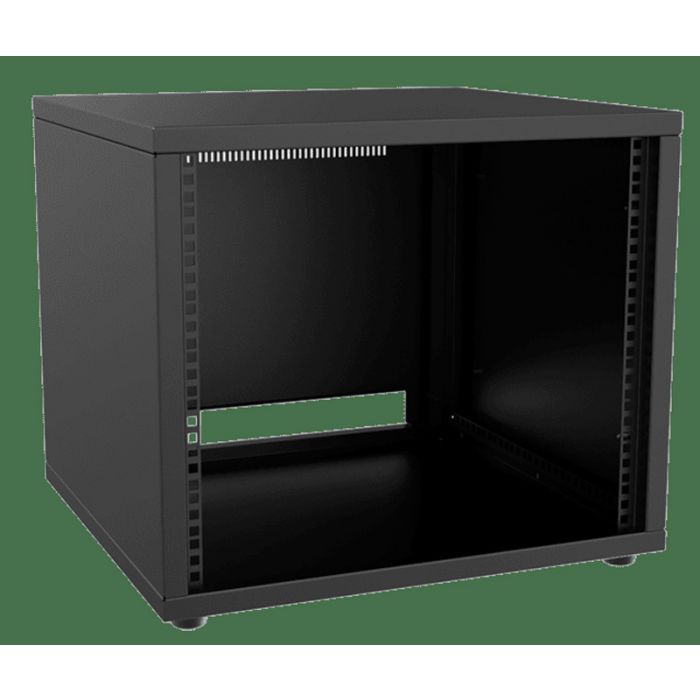

Caymon PR209/B
19" Metallrack, 9HE, 540x471x500mm, 17.7kg, schwarz (RAL9004)
The PR209 is a professional 19” metal rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. The rack comes in a flat pack as DIY kit. It is a solid construction with a 1.5 mm thick cold rolled steel frame and plates, finished with a black (RAL9004) fine structured powder coating. The rack is provided with punched rack profiles for use with snap-in cage nuts on the front side and stores up to 9 units. The rear panel can be screwed off for easy installation and has a cable entrance on the bottom. Optional available wheels provide mobility to the equipment.
Product features
Dimensions 540 x 453 (471) x 500 mm (W x H (incl. feet) x D)
Unit height 9 HE
Weight 17.700 kg
Colours Black (RAL9004)
Max. usable depth 475 mm
Accessories Optional KM600 - M6 Cage nuts
KS600 - M6 x 16 mm bolt DIN7985 Black
PR210WS - Wheel set for PR2xx racks
| Marke | Caymon |
|---|
