Caymon OPR309A/B
19" 9HE Rack, offene Ausführung, tiefenverstellbar von 300-450mm, schwarz
Dieser B2B-Shop steht ausschließlich Geschäftskunden zur Verfügung. Bitte registrieren Sie sich, um Preise sehen und Bestellungen aufgeben zu können.

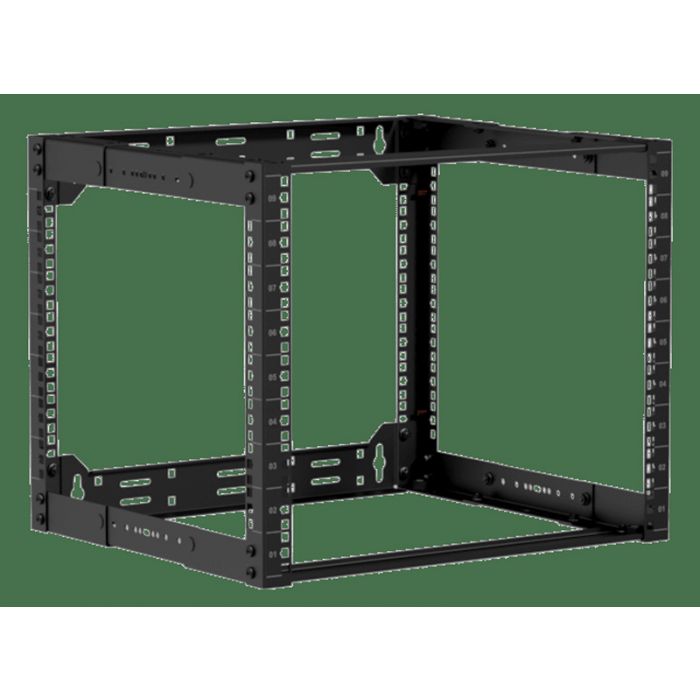

The OPR309A is an in depth adjustable professional and solid constructed open frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards which is suitable for wall mounted or floor standing installation. It ensures maximum installation, connectivity and maintenance ease storing up to 9 units of 19” equipment.
The open frame rack has an adjustable depth of 300 to 450 mm for easy installation and fitment in existing furniture. The rugged construction made of 2 mm thick steel allows pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in a record-breaking time.
Product features
Unit height 9 HE
Max. usable depth 300 ~ 450 mm
Max. load standing 100 kg
Max. load hanging 50 kg
Dimensions 520 x 425 x 300~450 mm (W x H x D) (excl. rubber feet)
Colours Black (RAL9004)
Accessories Included 4 x Levelling feet
4 x M8 expanding wall bolt
20 x Cage nuts + screws
Optional KM600 - M6 Cage nuts
Weight 8.5 kg
| Marke | Caymon |
|---|
