Caymon OPR306A/B

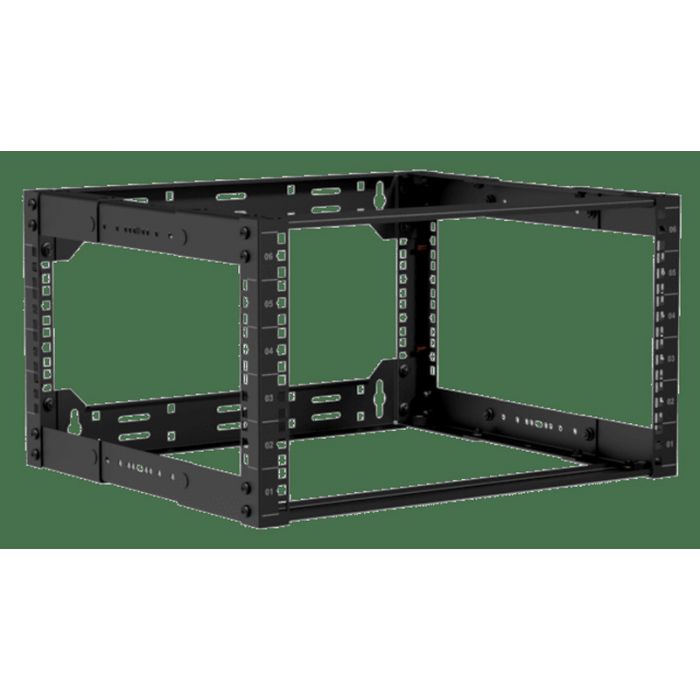

The OPR306A is an in depth adjustable professional and solid constructed open frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards which is suitable for wall mounted or floor standing installation. It ensures maximum installation, connectivity and maintenance ease storing up to 6 units of 19” equipment.

The open frame rack has an adjustable depth of 300 to 450 mm for easy installation and fitment in existing furniture. The rugged construction made of 2 mm thick steel allows pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in a record-breaking time.

Product features
Unit height 6 HE
Max. usable depth 300 ~ 450 mm
Max. load standing 100 kg
Max. load hanging 25 kg
Dimensions 520 x 291 x 300~450 mm (W x H x D) (excl. rubber feet)
Colours Black (RAL9004)
Accessories Included 4 x Levelling feet
4 x M8 expanding wall bolt
12 x Cage nuts + screws
Optional KM600 - M6 Cage nuts
Weight 8 kg
