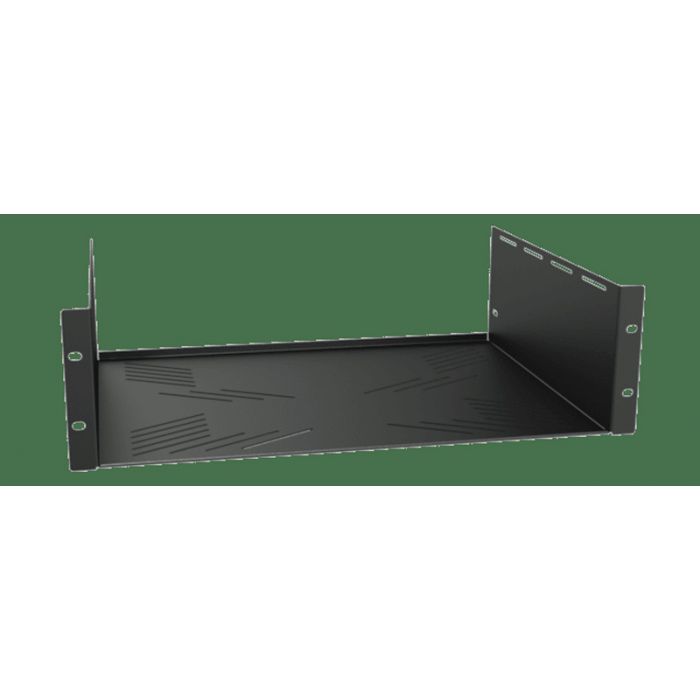

Caymon IS310

The IS Series are 19” fixed shelves which are constructed of cold rolled steel with a plate thickness of 1,5 mm. They are available in three models for 1 unit, 2 units and 3 units rack mounting with each of them a usable depth of 325 mm. The special cutout structure allows easy and effective rack assembly for any device which is not standard fitted with 19” mounting ears, including wire fixation. They are all finished with a black (RAL9004) powder coating with fine structured finish which ensures an improved scratch resistance.

Product features
Dimensions 483 x 132.5 x 331.5 mm (W x H x D)
Unit height 3 HE
Max. usable depth 325 mm
Weight 2.730 kg
Max. load 15 kg (without L-rails - uniformly distributed)
30 kg (with L-rails - uniformly distributed)
