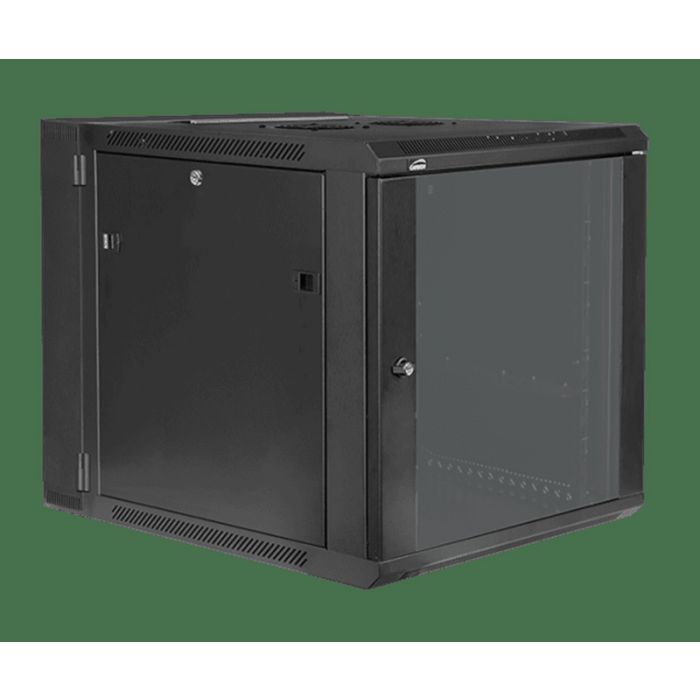

Caymon HPR512/B

Bestellnr.
196567

19" 12HE Rack zur Wandmontage, zweiteilig, nutzbare Tiefe 510mm, schwarz RAL9004

The HPR512 is a professional 19” double section wall rack cabinet which complies to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It ensures maximum installation, connectivity and maintenance ease storing up to 12 units of 19” equipment. The solid construction made of an 1.5 mm thick steel frame and 1.2 mm thick plates is finished with a black (RAL9004) fine structured powder coating.

It provides a stable and secure installation while the double section structure allows easy access to the rear side of the equipment. The tempered smokey glass front door is reversible and secured with a key lock which keeps the equipment accessible for authorized persons only.

Other present features are removable sides and in depth adjustable 19” profiles with unit measurement indicators and punched square holes for use with snap-in cage nuts.

Product features
Dimensions 600 x 638 x 550 mm (W x H x D)
Unit height 12 HE
Max. usable depth 510 mm
Max. load 30 kg
Colours Black (RAL9004)
Accessories Included 1 x WPR45LR
2 x key for front door
4 x Key for sidepanel lock
10 x Cage nuts + screws
1 x Allen key
Optional WPR45FS - Fixed shelf
WPR45LR - L-Rail pair
WPR10RF - Roof fan 120x120 mm
SPR10DC - Dust cover brush
KM600 - M6 Cage nuts
KS600 - M6 x 16 mm bolt DIN7985 Black

Mehr Informationen
Marke Caymon
