Caymon GPR412/B


19" 12HE Rack zum Ausziehen, nutzbare Einbautiefe 425mm, schwarz

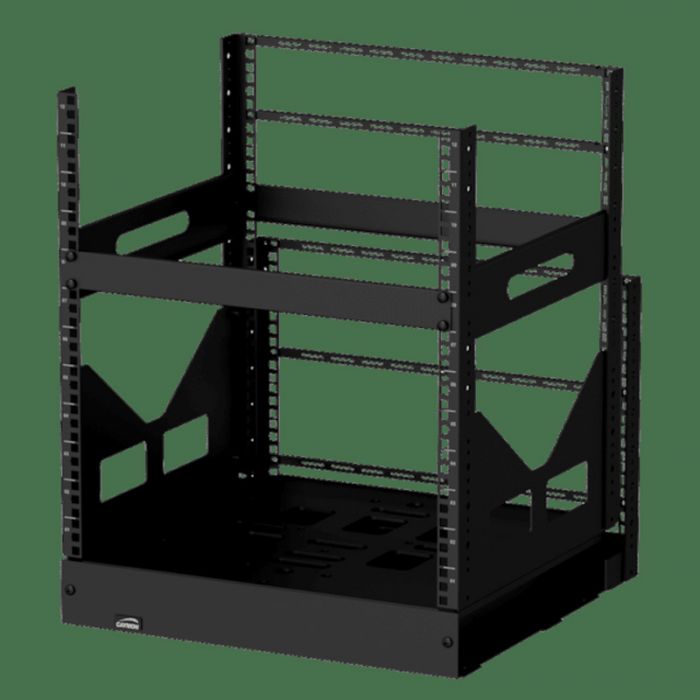

The GPR412 is a professional and solid constructed slide-out rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It offers a flush mount solution for installation up to 12 units of equipment. The HexaSlide™ extending equipment bay combined with cable management rear supports allows rack integration into walls or furniture, while keeping the rear side of the equipment accessible for maintenance and servicing. Position locking in extended position with rotation angles for 45° and 90° allows easy fitting for the equipment, while locking in retracted position offers optimal security and stability for permanent installation. The construction is made of 3.0 mm thick steel profiles and finished
in a black (RAL9004) powder coating with fine structure and printed unit measurement indicators.

Product features
Dimensions 503 x 611 x 489 mm (W x H x D)
Unit height 12 HE
Max. usable depth 425 mm
Max. load 60 kg
Colours Black (RAL9004)
Accessories Included 24 x Cage nuts + screws
Optional KM600A - M6 Cage nuts
Weight 36.26 kg

Mehr Informationen
Marke Caymon
