Caymon FCC116/B

Bestellnr.
196740

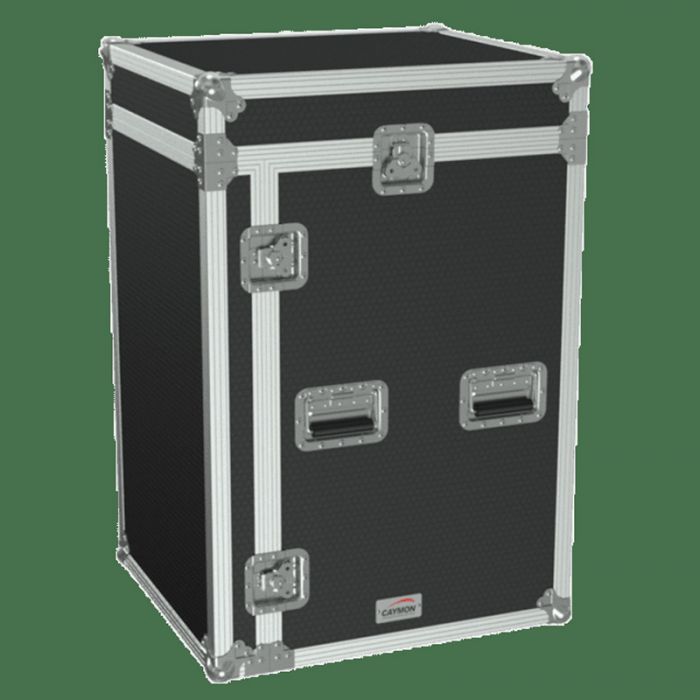

Kombi-Flightcase, 19" 18HE Front / 11HE Top, 9mm Sperrholz, abnehmbare Deckel, schwarz

The FCC116 is a combo flightcase with removable top and front cover, compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards for 19” equipment installation. The construction is made out of high quality 9mm plywood covered by a ProShield™ top layer, offering optimal protection for your equipment. The top section allows installation of 19” mixers or controllers with a maximum height up to 11 units, slanted over an 8 degree angle. The front section allows equipment installation up to maximum 18 units, depending of the top equipment’s installation depth. A hinged rear door with cable entry offers easy access to the equipment’s rear side. Mounting of the equipment can be done using the perforated rack rail with punched square holes for use with snap-in cage nuts. Superior durability and handling convenience is guaranteed through Penn-Elcom® hardware such as heavy-duty ball corners, rivet protected recessed flip handles and MOL™ type butterfly latches.

Product features
Dimensions 547 x 940 x 627 mm (W x H x D) (incl. covers, excl. feet)
Unit height Front 18 HE
Top 11 HE
Max. usable depth Front 525 mm
Top Depending of installed equipment
Construction 9 mm high-quality plywood
Finish ProShield™ top layer
Handles 4 x Medium heavy-duty (Penn Elcom H7154Z)
Latches 6 x Medium MOL™ (Penn Elcom L907/928/10)
1 x Small (L903/7336Z - rear door)
Weight 30.50 kg
Accessories Optional KM500 - M5 Cage nuts
KS500 - M5 x 16 mm bolt DIN7985 Black
KM600 - M6 Cage nuts
KS600 - M6 x 16 mm bolt DIN7985 Black
FCB104 - Caster board (530 x 560 mm)
BSFxxx - 19” blind panels (1 to 6U)
BSVxxx - 19” ventilated blind panels (1 to 6U)

Mehr Informationen
Marke Caymon
