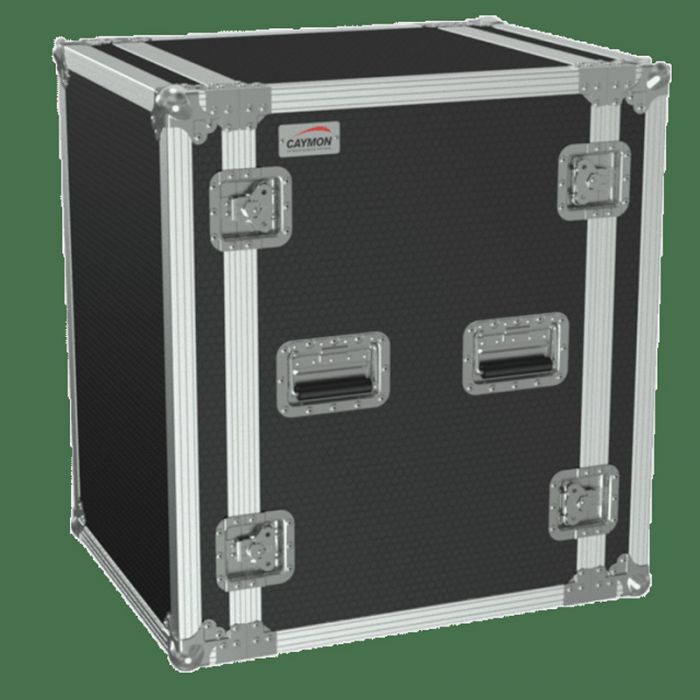

Caymon FC116/B


Flightcase, 19" 16HE, nutzbare Tiefe 483mm, 9mm Sperrholz, abnehmbare Deckel, schwarz

The FC116 is a 16 unit professional double cover flightcase compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards for 19” equipment installation. The construction is made out of high quality 9 mm plywood covered by a ProShield™ top layer, offering optimal protection for your equipment. Both front and back lids are detachable, allowing instant access to both controls and connections of your equipment. Mounting of the equipment can be done using the perforated rack rail with punched square holes for use with snap-in cage nuts, while the dual structure allows installation of horizontal supports for heavy equipment. Superior durability and handling convenience is guaranteed through Penn-Elcom® hardware such as heavy-duty ball corners, rivet protected recessed flip handles and MOL™ type butterfly latches.

Product features
Dimensions 529 x 744 x 687 mm (W x H x D) (excl. rubber feet)
Unit height 16 HE
Tunnel depth 507 mm (excl. covers)
Max. usable depth 482 mm
Weight 32.620 kg
Construction 9 mm high-quality plywood
Finish ProShield™ top layer
Handles 4 x Medium heavy-duty (Penn Elcom H7154Z)
Latches 8 x Medium MOL™ (Penn Elcom L907/928/10)
Accessories Optional KM600 - M6 Cage nuts
KS600 - M6 x 16 mm bolt DIN7985 Black
KM500 - M5 Cage nuts
KS500 - M5 x 16 mm bolt DIN7985 Black
SPR60LR - L-rail (horizontal support)
FCB104 - Caster board (530 x 560 mm)
BSFxxx - 19” blind panels (1 to 6U)
BSVxxx - 19” ventilated blind panels (1 to 6U)

Mehr Informationen
Marke Caymon
