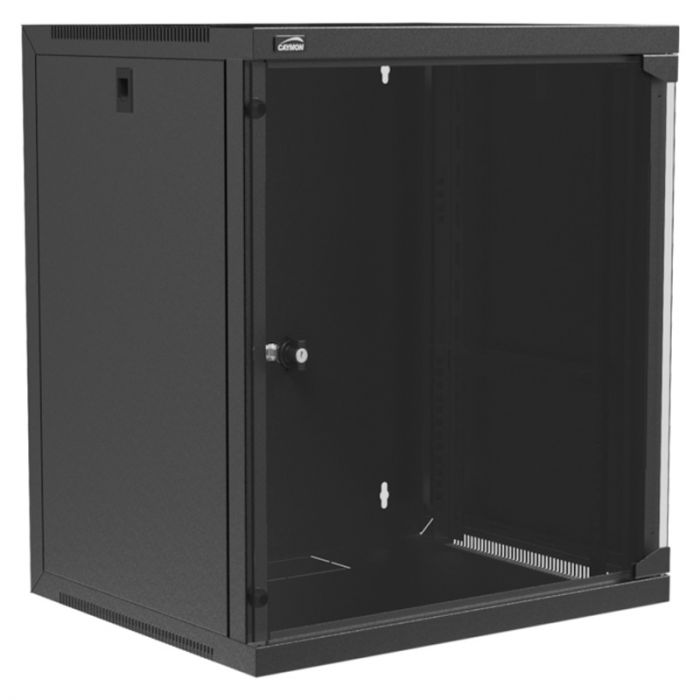

Caymon EPR412/B
19" 12HE Rack zur Wandmontage, nutzbare Tiefe 370mm, schwarz RAL9004
The EPR412 is an economical wall mountable 19" rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. The construction is made of a 1.5 mm thick steel frame with 1.0 mm thick plates and is finished with a black (RAL9004) fine structured powder coating. It stores up to 12 units of 19” equipment, comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure easy fitting of the equipment. The tempered glass front door is reversible and secured with a key lock which keeps the equipment accessible for authorized persons only. Other present features are removable sides and in depth adjustable 19” profiles allowing easy and flexible cabling & installation.
Product features
Unit height 12 HE
Max. usable depth 370 mm
Max. load 50 kg
Dimensions 540 x 617 x 444 mm (W x H x D)
Weight 18.700 kg
Colours Black (RAL9004)
Accessories Included 2 x key for front door
24 x Cage nuts + screws
Optional KM600 - M6 Cage nuts
KS600 - M6 x 16 mm bolt DIN7985 Black
| Marke | Caymon |
|---|
