Caymon DPR942/B
19" 42HE Rackrahmen mit 4 Montageleisten, tiefenverstellbar von 550-1015mm, schwarz

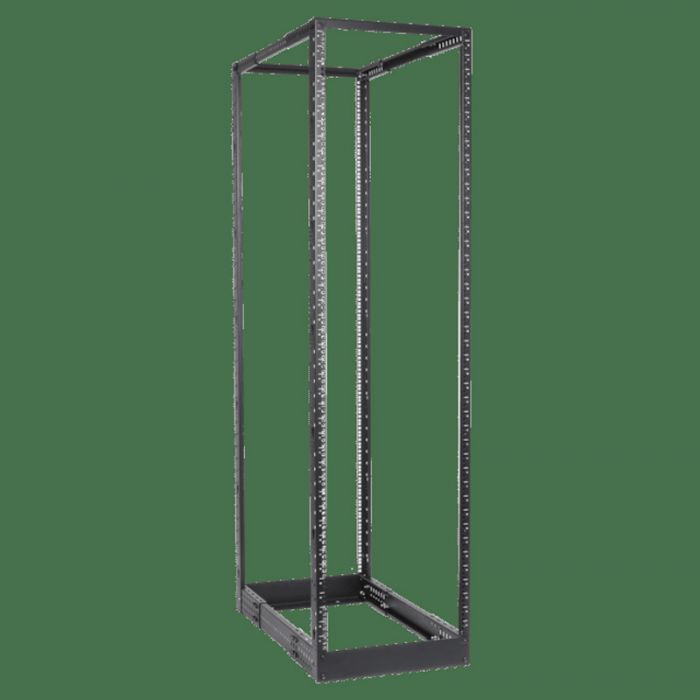

The DPR942 is a professional and solid constructed 4-post open-frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It offers a sturdy and low-cost solution, suitable for installing up to 42 units of 19” equipment. The open frame construction is made of 2.0 mm thick steel and finished in a black (RAL9004) powder coating with fine structure and printed unit measurement indicators. Adjustable vertical supports allow in depth adjustment within a range of 56 to 102 cm while the base angle profiles can be mounted outwards for increased stability or inwards for conserve floor space. Delivery in a flat-down package allows easy transportation of the rack to any installation location, while the simple structure allows assembly by a single person in a record-breaking time.
Product features
Unit height 42 HE
Max. usable depth 550 ~ 1015 mm
Max. load 450 kg
Dimensions 514 x 2006 x 560 ~ 1020 mm (W x H x D)
Weight 24.500 kg
Colours Black (RAL9004)
Accessories Included 1 set Assembly hardware
24 x Cage nuts + screws
Optional KS600 - M6 x 16 mm bolt DIN7985 Black
KM600 - M6 Cage nuts
| Marke | Caymon |
|---|
