Caymon CASY032/B


CASY Gehäuse zur Wandmontage für bis zu 2 Module, schwarz

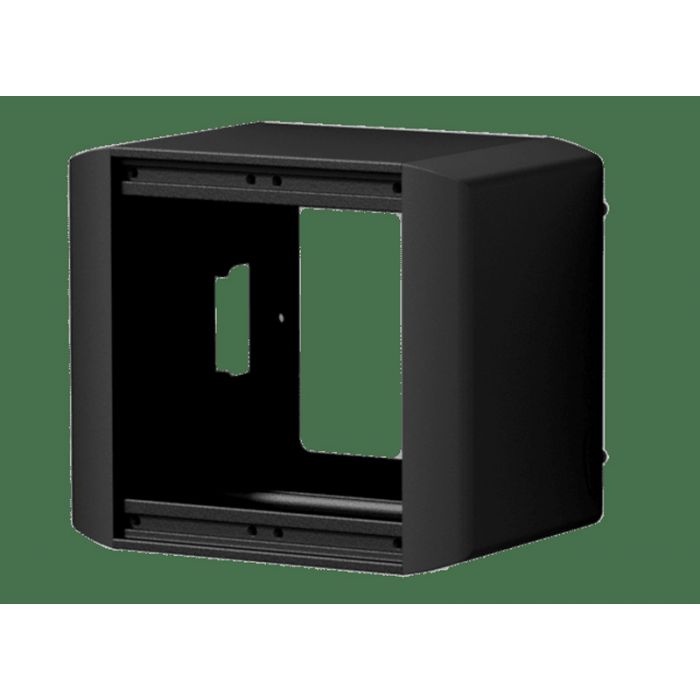

The CASY032 is a modular on-wall chassis which can be fitted with 2 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing the system to be adapted to project specific requirements. Possibilities range from audio, video and data interconnection to power distribution, control panels, power supplies and many more. The aluminum construction features pre-threaded hole inserts allowing module installation with a maximum of 2 units with a built-in depth up to 60 mm. It can be mounted on any wall or surface, while cable entry is possible through large access holes on the rear side. The sides are constructed out of ABS material with break-out points allowing cable entry through a duct or gland. Modules can be fixed inside the unit using the included M3 screws. The overall construction is finished in a black (RAL9004) structured and scratch resistant powder coating.

Product features
Module Units 2 x front side
Dimensions 100 x 88.1 x 65 mm (W x H x D)
Max. usable depth 60 mm
Weight 0.19 kg
Connection Large access holes on rear side Cable duct or gland entry on sides
Finish Structured powder coating
Colours Black (RAL9004)

Mehr Informationen
Marke Caymon
