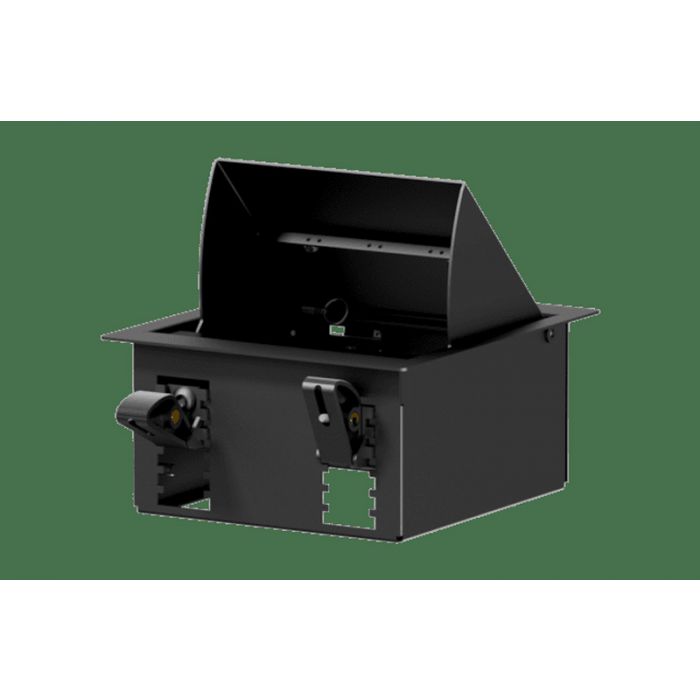

Caymon CASY024/B


Tisch-Einbaugehäuse für bis zu 4 CASY-Module, schwarz RAL9004

The CASY024 is a modular desktop and wall mountable chassis which can be fitted with 4 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing the system to be adapted to project specific requirements. Possibilities range from audio, video and data interconnection to power distribution, control panels, power supplies and many more.

The cold rolled steel construction features pre-threaded hole inserts allowing module installation with a maximum of 4 units with a built-in depth up to 68.5 mm. The module insert can be mounted preassembled eliminating the risk of dropping screws or parts inside the wall or table during module mounting. Thanks to the BlindSnap™ mounting system, it can be mounted in any wall or surface without access to the backside. Cable entry with dust protection brush is possible through large access holes on the rear side. The module insert can be opened and closed for a clean installation. The overall construction is finished in a black (/B) or grey (/G) structured and scratch resistant powder coating.

Product features
Dimensions 178 x 198 x 91.5 mm (W x H x D)
Max. usable depth 68.5 mm
Weight 1.62 kg
Construction Cold rolled steel
Connection Large access hole on the rear
Finish Structured powder coating
Colours Black (RAL9004)
Grey (RAL9006)
Module Units 4 x front side
Cut-out measurement 161 x 175 mm (W x H)
Clamping range 6 - 50 mm
Mounting BlindSnap™

Mehr Informationen
Marke Caymon
