Caymon CASY003/B

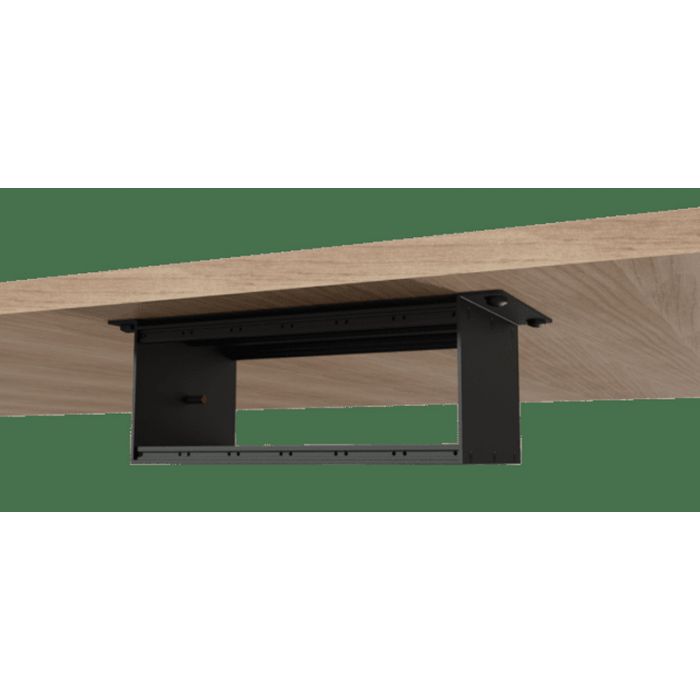

The CASY003 is a table / desk mountable chassis which can be fitted with 6 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing the system to be adapted to project specific requirements. Possibilities range from audio, video and data interconnection to power distribution, control panels, power supplies and many more. The aluminum top and bottom construction features pre-threaded hole inserts allowing module installation with a maximum of 6 units on both front and rear side. Modules can be fixed inside the unit using the included M3 screws, while the side ears allow the unit to be mounted both on and under any table or desk. The side ears are constructed out of cold-rolled steel with internal pillars for chassis grounding. The overall construction is finished in a black (RAL9004) structured and scratch resistant powder coating.

Product features
Dimensions 267 x 93.1 x 120 mm (W x H x D)
Weight 0.963 kg
Construction Alu extrusion with steel side ears
Module Units 6 x front side & 6 x rear side
Assembly Pre-threaded M3 screw holes
Mounting Table / desk mounting ears
Finish Structured powder coating
Colours Black (RAL9004)
Accessories Optional CASYx0x - Blind / connector hole plates
CASYx2x - XLR connector plates
CASYx3x - Audio signal connector plates
CASYx4x - Loudspeaker connector plates
CASYx5x - Video connector plates
CASYx6x - Data connector plates
CASYx8x - Power connector plates
CASYx9x - Other plates
