Caymon CASY002/B


19" 2HE Rackgehäuse für bis zu 12 CASY-Module, 483x88x270mm BxHxT, schwarz

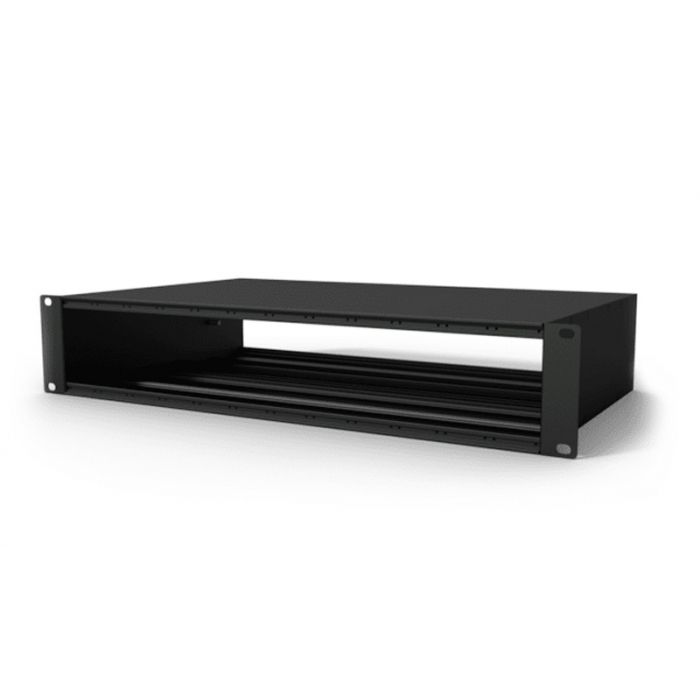

The CASY002 is a 19” rack-mountable chassis which can be fitted with 2 x 12 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing the system to be adapted to project-specific requirements. Possibilities range from audio, video and data interconnection, to power distribution, internal rack supplies and many more. The aluminium top and bottom construction features pre-threaded hole inserts allowing module installation with a maximum of 12 units on both front and rear sides. Modules can be fixed inside the unit using the included M3 screws, while the side ears are fitted with holes for fixation to a 19” equipment rack. The side ears are constructed out of cold-rolled steel with internal pillars for chassis grounding. The overall construction is finished in a black (RAL9004) structured and scratch-resistant powder coating.

Product features
Dimensions 483 x 88 x 270 mm (W x H x D)
Weight 3.140 kg
Construction Alu extrusion with steel side ears
Module Units 12 x front side & 12 x rear side
Assembly Pre-threaded M3 screw holes
Mounting 19” Rack mount (2HE)
Finish Structured powder coating
Colours Black (RAL9004)
Accessories Optional CASY021/B - 12 space strain relief
CASYx0x - Blind / connector hole plates
CASYx2x - XLR connector plates
CASYx3x - Audio signal connector plates
CASYx4x - Loudspeaker connector plates
CASYx5x - Video connector plates
CASYx6x - Data connector plates
CASYx8x - Power connector plates
CASYx9x - Other plates

Mehr Informationen
Marke Caymon
