Caymon CAS110

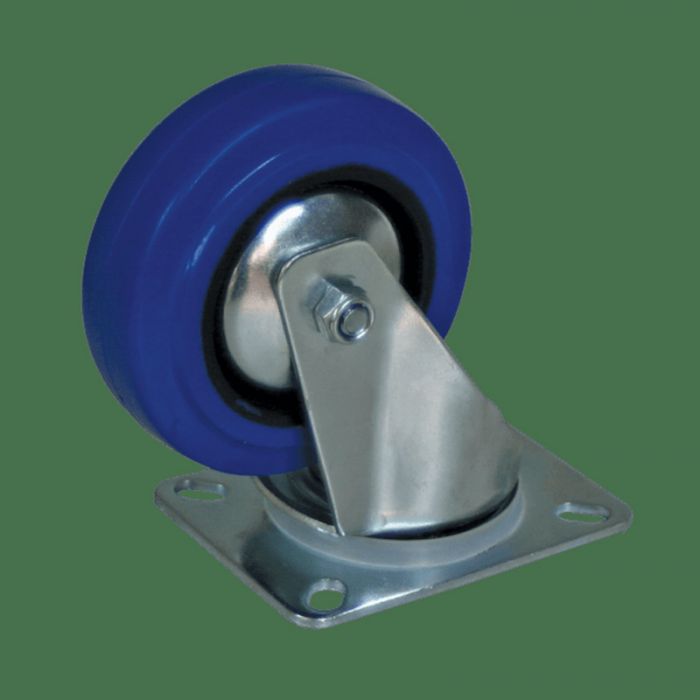

The CAS110 is a swivel bearing caster with a diameter of 100 mm (4”) and thickness of 32 mm. The solid zinc-plated steel construction can hold a maximum load of 113 Kg’s / pcs (450 Kg for a set of 4 wheels). The roller bearing guarantees a long-term reliability, while the blue rubber tyre ensures optimal grip on any surface. Mounting can be done by using four screw holes with a mutual distance 80 x 60 mm.

Product features
Height 127 mm
Weight 0.815 kg
Base Material Zinc plated steel 2.5 & 3 mm
Wheel dimensions 100 mm x 32 mm
Max. load 113 kg (450 kg / 4-wheel kit)
Mounting hole distance 80 mm x 60 mm (14 x 9 mm fix slots)
Mounting plate dimensions 100 mm x 80 mm
