Caymon BSF02

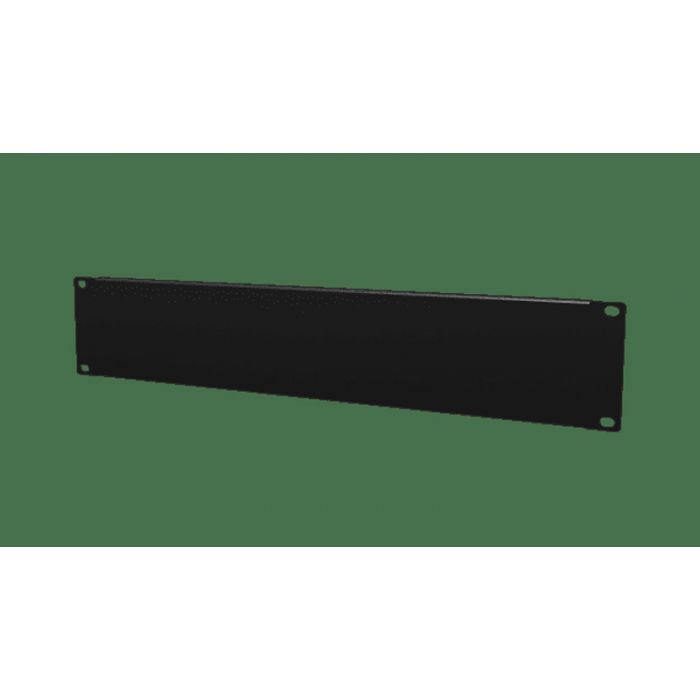

An elegant 19” blind plate made of steel with a plate thickness of 1.5 mm and provided with a black (RAL9004) structured powder coating. The blind plate is used to fill in gaps between equipment.

Product features
Dimensions 483 x 14.1 x 10 mm (W x H x D) (BSF003)
483 x 21.5 x 10 mm (W x H x D) (BSF005)
483 x 43.7 x 10 mm (W x H x D) (BSF01)
483 x 88.1 x 10 mm (W x H x D) (BSF02)
483 x 132.5 x 10 mm (W x H x D) (BSF03)
483 x 177 x 10 mm (W x H x D) (BSF04)
483 x 221.5 x 10 mm (W x H x D) (BSF05)
483 x 265.9 x 10 mm (W x H x D) (BSF06)
Weight 0.156 kg (BSF003)
0.198 kg (BSF005)
0.28 kg (BSF01)
0.46 kg (BSF02)
0.70 kg (BSF03)
0.82 kg (BSF04)
1.10 kg (BSF05)
1.30 kg (BSF06)
Unit height 0.33 HE (BSF003)
0.5 HE (BSF005)
1 HE (BSF01)
2 HE (BSF02)
3 HE (BSF03)
4 HE (BSF04)
5 HE (BSF05)
6 HE (BSF06)
