Caymon BDR03

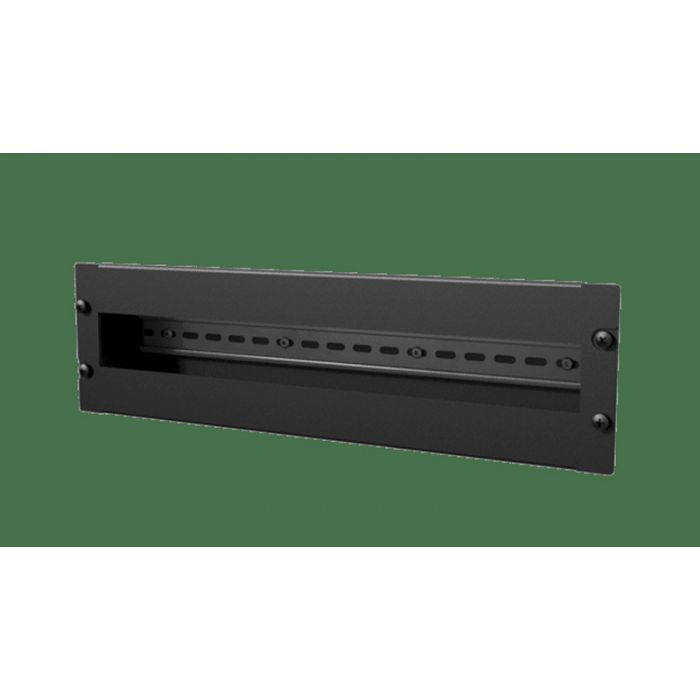

The BDR03 is a 19" panel with DIN rail which can hold up to 24 modules. The DIN rail is mounted on a separate bracket for easy installation. It offers the perfect solution for integrating DIN modules in a 19" rack. Integrated strain relief slots are provided on the backside of the panel together with an earth return rod.

Both the bracket and front panel are made out of 1.5 mm thick steel finished with a black (RAL 9004) structured powder coating. The removable front panel with cutout comes included with the BDR03, allowing easy access to the front of the installed modules, this while maintaining a clear overview of your custom setup. Also included with the BDR03 are DIN rail blind covers (12 modules) for a clean finish when not all DIN slots are in use. These DIN rail blind covers, with article code BDP06, are also optionally available.

Product features
Dimensions 483 x 132.5 x 92 mm (W x H x D)
Cut-out measurement 433 x 48 mm (W x H)
Weight 1.49 kg
Unit height 3 HE
