Bose Panaray MA12 EX Weiss

Wetterfester Line Array Lautsprecher für die Installation im Innen- und Aussenbereich inkl. zwei Speakon NL-4-Verbindungen und Schraubverbindungen

Entzerrung: Aktiv, in Verbindung mit:
PANARAY System Digital Controller II
ControlSpace ESP-88 / AMS-8
Bose EQ-Card Serie II-S
Nennimpedanz: 8 Ohm
Nennleistung: Sprache, Musik Full Range 150 W
Nur Sprache (155 Hz – 12 kHz, -3 dB) 300 W
Empfohlene Verstärkerleistung: 300 W (100V - 150/75/38 W,
optional mit zusätzlichem CVT-12)
Maximaler Schalldruck: 109 dB SPL (@ 1 m, Rosa Rauschen bei Nennbelastbarkeit)
Abstrahlwinkel (-6 dB): horizontal 160°, vertikal 20°
Frequenz: 75 Hz - 13 kHz
Abmessungen (H x B x T): 98.4 x 10.4 x 14 cm
Gewicht: 9 kg
Farbausführung: weiß

This 150-watt, weather-resistant loudspeaker is a slender, paintable loudspeaker with wide horizontal coverage and full frequency response between 75 Hz and 13 kHz, -3 dB (58 Hz to 16 kHz, -10 dB) for installation indoors or outdoors. Twelve high-excursion 2.25" (57mm) drivers arranged in a patented Articulated Array® design deliver uniform side-to-side, even 160° horizontal coverage and tonal balance.

Stacking the Panaray MA12EX loudspeaker modules provides greater vertical pattern control, significantly reducing ceiling and floor reflections and improving gain before feedback, while still delivering 160° (-6 dB) of horizontal dispersion and offering greater vertical control of the lower frequencies between 75 and 500 Hz.

Each driver uses Kevlar impregnated cones to repel water and glass fiber filled nylon frames for durability and strength. The hardware is weather-resistant stainless steel and aluminum, and the grille is weather-resistant aluminum. Neutrik NL4 connectors and a barrier strip offer options for connections.

For indoor applications with speech and light music, the Panaray MA12 modular line array loudspeaker is recommended.

A full line of environmental brackets are designed to meld seamlessly with the MA12EX loudspeaker so you can install it in stacks of one, two or three. The MA12EX coupling bracket creates a sturdy bayonet connection to stabilize these stacks, while the pitch only, bi-pivot and pitch lock upper brackets offer precise pitch and yaw adjustments.

The MA12EX is well suited for indoor and outdoor houses of worship, multipurpose spaces, recreation, retail, restaurants, auditoriums, transportation hubs, gymnasiums, atriums and malls.

Key Features

• Designed to deliver full-range music and high speech intelligibility in both indoor and outdoor acoustically demanding spaces
• Full-range music performance from 75 Hz to 13 kHz (-3 dB) without the need for additional bass augmentation
• Articulated Array® loudspeaker technology delivers wide horizontal dispersion for broad 160° coverage*

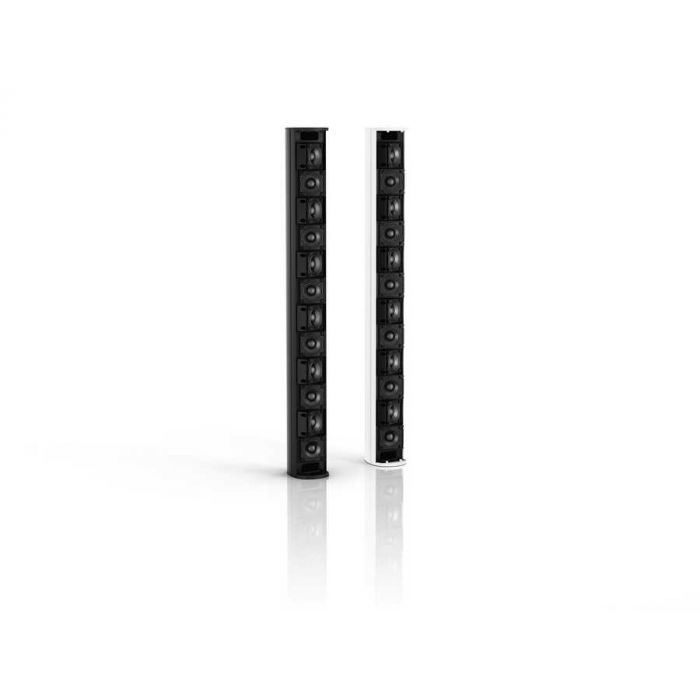

• Available in black or white, paintable

System Performance (Single Module)

Frequency Response (-3 dB) 75 Hz - 13 kHz
Frequency Range (-10 dB) 58 Hz - 16 kHz
Calculated Maximum SPL @ 1m2 109 dB
Input Power Rating (continuous/peak) 150W/600W
Axial Sensitivity (SPL/1W @ 1m) 87 dB
Nominal Horizontal Coverage (-6 dB) 160°
Nominal Vertical Coverage (-6 dB) 20°
Nominal Impedance (transformer bypass) 8 Ohm
Minimum Impedance 7.1 Ohm
Crossover Frequency N/A
Recommended High-Pass Filter 65 Hz

Transducers
Driver Complement Twelve 2.25" (57mm) high-excursion, weather-resistant drivers

Physical
Enclosure Material Powder-coated aluminum
Grille Powder-coated aluminum
Environmental Specification Indoor and outdoor use per IEC 529 IPX5 specifications
Connectors Two parallel-wired Neutrik Speakon® NL4 connectors
Two two-conductor barrier strips
Suspension Attachment 6 x M6 threaded inserts
Dimensions (H x W x D) 38.8" x 4.1" x 5.5"
(986mm x 104mm x 140mm)
Net Weight 20.8lbs
Shipping Weight 22.9lbs
