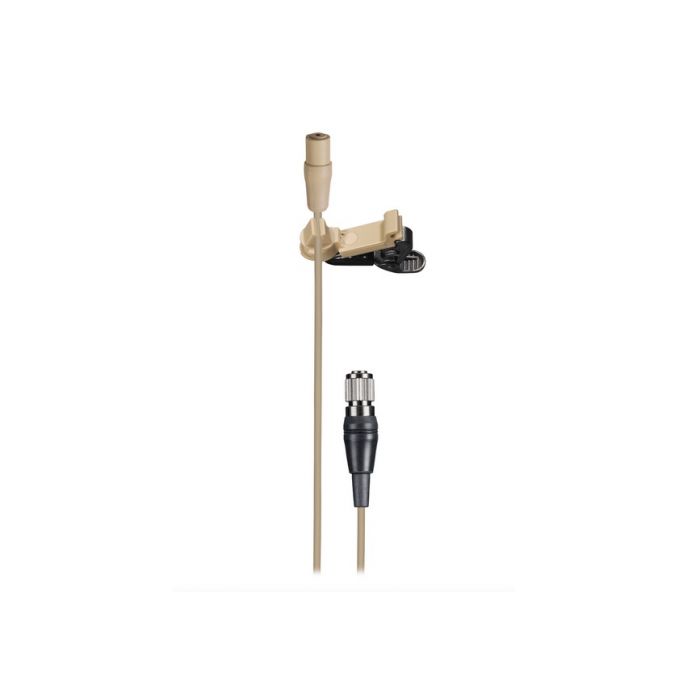

Audio Technica AT899CTH

Audio-Technica's omnidirectional AT899 is engineered for intelligible, accurate voice reproduction. Its low-profile design (a mere 5 mm in diameter) assures minimum visibility. The mic may be worn as a lavalier and is easily hidden in clothing or hair. It offers the convenience of battery or phantom power; its switchable low-frequency roll-off reduces popping.

Maximum intelligibility and clean, accurate reproduction for vocalists, lecturers, stage and television talent, and houses of worship

Low-profile design (a mere 5 mm in diameter) is ideal for applications requiring minimum visibility

Operates on battery or phantom power

All wireless models available in either low-reflectance black or beige

Extensive array of provided accessories includes a clothing clip, viper clip, magnet clip and lanyard (black models only), windscreens, element covers, interchangeable single and double mic holders

Accessories available separately include complete accessory kits, clothing clips, three-pack element covers and three-pack windscreens

9.8' (3.0 m) cable permanently attached to mic, TA3F connector at power module

RoHS compliant''”free from all substances specified in the EU directive on hazardous substances

Also available as:
AT899c – less power module; 55" (1.4 m) cable, unterminated
AT899c-TH – same as AT899c but in "theater" color (beige)
AT899cL4 – less power module; 55" (1.4 m) cable terminated with Lemo connector for Sennheiser SK wireless systems
AT899cL4-TH – same as AT899cL4 but in "theater" color (beige)
AT899cT4 – less power module; 55" (1.4 m) cable terminated with TA4F connector for Shure wireless systems
AT899cT5 – less power module; 55" (1.4 m) cable terminated with TA5F connector for LetroSonics wireless systems
AT899cT5-TH – same as AT899cT5 but in "theater" color (beige)
AT899cH – less power module; 55" (1.4 m) cable terminated with a screw-down 4-pin connector for use with Audio-Technica wireless systems featuring cH-style connector
AT899cH-TH – same as AT899cH but in "theater" color (beige)
AT899cW – less power module; 55" (1.4 m) cable terminated with a locking 4-pin connector for use with Audio-Technica wireless systems featuring cW-style connector
AT899cW-TH – same as AT899cW but in "theater" color (beige)

POLAR PATTERN Omnidirectional
FREQUENCY RESPONSE 20-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY Phantom: -43 dB (7.0 mV) re 1V at 1 Pa
Battery: -46 dB (5.0 mV) re 1V at 1 Pa
IMPEDANCE Phantom: 200 ohms
Battery: 250 ohms
MAXIMUM INPUT SOUND LEVEL Phantom: 138 dB SPL, 1 kHz at 1% T.H.D.
Battery: 116 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) Phantom: 108 dB, 1 kHz at Max SPL
Battery: 86 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 64 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
BATTERY TYPE 1.5V AA/UM3
BATTERY CURRENT / LIFE 0.4 mA / 1200 hours typical (alkaline)
SWITCH Flat, roll-off (recessed)
WEIGHT (MICROPHONE) 0.02 oz (0.5 g)
WEIGHT (POWER MODULE) 3.6 oz (102 g)
DIMENSIONS (MICROPHONE) 0.63" (16.0 mm) long,
0.20" (5.0 mm) diameter
DIMENSIONS (POWER MODULE) 5.71" (145.0 mm) long,
0.83" (21.0 mm) diameter
OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
