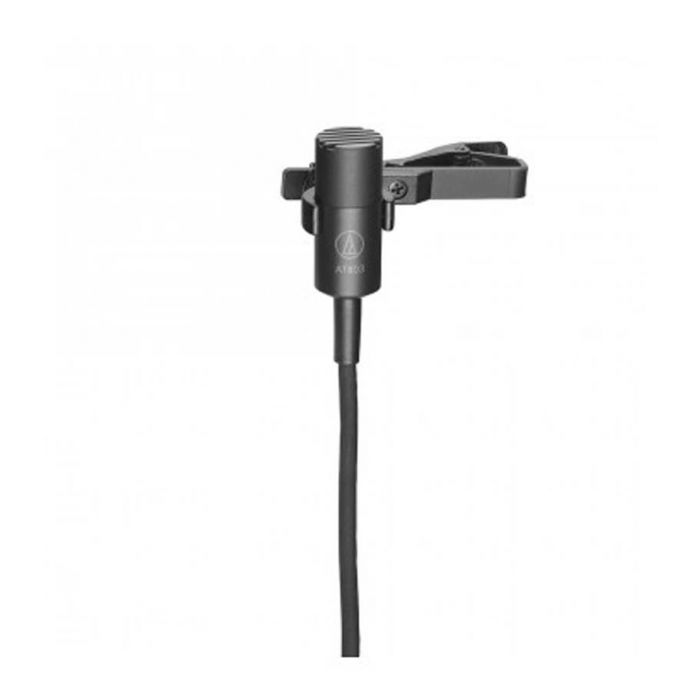

Audio Technica AT803

The AT803 provides excellent yet unobtrusive sound pickup for lecturers and stage/TV performers. Designed for clip-on lavalier and musical instrument use, it features an integral 80 Hz high-pass filter that provides easy switching from a flat frequency response to a low-end roll-off. The microphone operates on battery or phantom power.
* High intelligibility for lecturers and stage/TV performers
* Provides excellent yet unobtrusive sound pickup
* UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
* Operates on battery or phantom power
* 6' (1.8 m) cable permanently attached to mic, TA3F connector at power module

Technische Daten:
Element Fixed-charge back plate, permanently polarized condenser
Richtcharakteristik Omnidirectional
Frequenzbereich 30 - 20,000 Hz
Empf. am offenen Schaltkreis Phantom: -44 dB (6.3 mV) re 1V at 1 Pa
Battery: -46 dB (5.0 mV) re 1V at 1 Pa
Impedanz Phantom: 200 Ω
Battery: 270 Ω
Max. Eingangspegel Phantom: 135 dB SPL, 1 kHz at 1% T.H.D.
Battery: 121 dB SPL, 1 kHz at 1% T.H.D.
Trittschallfilter 80 Hz, 18 dB/octave
Schalter Off, on-flat, on-roll-off
Dynamikumfang Phantom: 107 dB, 1 kHz at Max SPL
Battery: 93 dB, 1 kHz at Max SPL
Geräuschpegelabstand 66 dB, 1 kHz at 1 Pa
Phantomspeisung 11-52V DC, 2 mA typical
Batterietyp 1.5V AA/UM3
Batterielebensdauer 0.4 mA / 1200 hours typical
(alkaline)
Gewicht Microphone : 2.8 g (0.1 oz) - Power Module : 139 g (4.9 oz)
Abmessungen Microphone: 25.0 mm (0.98") long, 10.2 mm (0.40") diameter - Power Module: 84.0 mm (3.31") H x 63.0 mm (2.48") W x 22.0 mm (0.87") D
Ausgangsanschluss Integral 3-pin XLRM-type (on Power Module)
Kabel 1.8 m (6') long (permanently attached to microphone), 2.6 mm (0.10") diameter, 2-conductor, shielded cable with TA3F-type connector
Beiliegendes Zubehör AT8531 power module; AT8419 clothing clip; AT8116 windscreen; battery; protective carrying case
