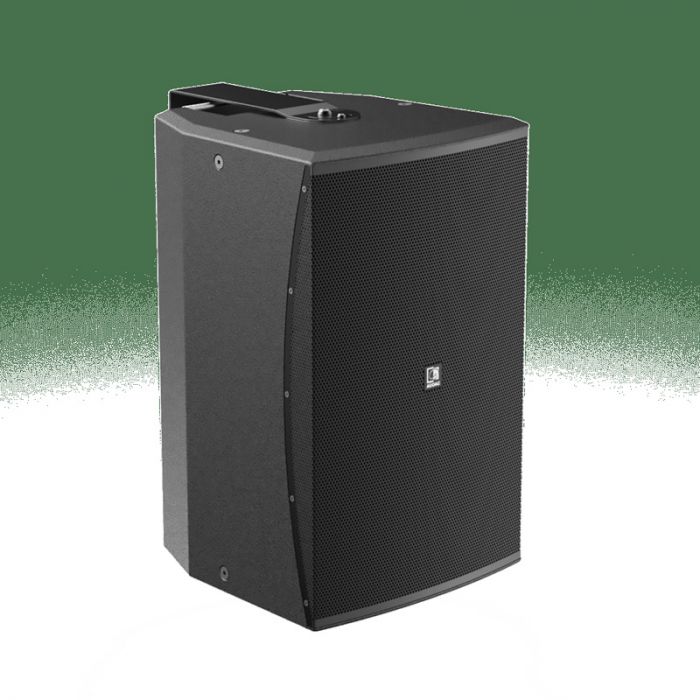

Audac VEXO115A/B

The VEXO series are compact high performance 2-way active loudspeakers and come in 3 different models, each of them with different sizes and performances meeting the requirements of every application. The low-frequency transducer, which is made out of high-quality materials, is combined with a 1.7” voice coil compression driver, enabling high sound pressure levels and a tight driver response with a rotatable 90° x 70° coverage pattern for a wide range of applications.

Thanks to the unique driver composition, the VEXO115A delivers a clear and natural sound with an RMS power of 500 Watts and a maximum power of 2000 Watt. The frequency response (±3dB) starts from 50Hz up to 20 kHz and the sensitivity (1W/1m) reaches 100dB while a maximum continuous sound pressure level from 127dB can be achieved.

The construction of the cabinets is made of 12mm plywood with a polyurethane coating, making them resistant to any impact. The front side of the cabinet is finished with a powder-coated steel grill with acoustical foam. A recessed carry handle on the rear side makes carrying easy. Positioning and suspension of the speaker are easily achieved by using the standard 35 mm pole adapter on the bottom and the M10 rigging points. Two speaker connectors provide reliable connections with easy link-through to cabinets.

The optional Clever U bracket allows mounting the high power 2-way cabinet both horizontally and vertically. An inclination of -90° to +35° ensures an optimal positioning.

The optional MBK bracket even allows mounting the VEXO series to the ceiling which gives the opportunity to install the loudspeaker cleanly in any environment. By installing the optional ANI44XT Dante™ audio network interface in the active loudspeaker, the VEXO series can be integrated into any Dante enabled AV network and transfer digital audio with any compatible solution on the market.

The VEXO115A features the unique WaveDynamics™ innovation. Due to this DSP processor, the audio control and processing technology enable any user to effortless control the most advanced acoustic configurations.

The integrated DSP allows pre-sets for full-range, satellite and custom configurations and can be loaded via the USB slot on the back of the device. The AUDAC Touch™ application allows to equalize and create personalised presets and control the equipped VEXO loudspeakers. When installing the ANI44XT, all personalised presets and settings can be adjusted from anywhere at any time.
Variants

Coming soon VEXO115A/B - Black version
Coming soon VEXO115A/W - White version

Speaker type 2-way
Max. Power 2000 W
RMS Power 500 W
Impedance 8 Ω
Sensitivity (1W/1m) 100 dB
Sound Pressure (Max. W/1m) 127 dB
Connectors 3-pin Euro Terminal Block (Pitch - 3.81 mm)
3-Pin terminal block (linkthrough)
XLR male (linkthrough)
Inputs USB port
RJ45 (Ethernet)
Frequency Response (± 3 dB) 50 Hz - 20 kHz
Crossover Type Active
Dispersion Horizontal 90°
Vertical 70°
Drivers HF Compression driver with 1.7" VC and 1" throat
LF 15" (3" VC)
Connectors Remote control RJ45
Input 2 x Combo XLR / 6.3 mm jack
Power Consumption Standby 3.2 W
Idle 22.5 W
Product features
Dimensions 429 x 690 x 450 mm (W x H x D)
Weight 28.3 kg
Construction 12 mm high-quality plywood
Front finish Powder coated steel grill with acoustical foam
Powerdrive mount Powerdrive type 100 (127 x 70 mm)
Colours Black & White
Finish Cabinet finishing Polyurethane coating
Mounting & handling Rigging points 10 x M10
Stand fitting 35 mm pole adapter on bottom
Carry handles On top
Accessories Optional ANI44XT - Dante™ audio network interface
