Audac CP43ARP/W

CONNECTION PLATE - RJ45 + REPEATER - BTICINO

The CP43ARP allows you to attach one APM paging console on the front, while the phoenix connector on the back lets you route the signal to a next paging console or junction box. It can offer 20V power to the APM console and is also equipped with 2 jumpers to terminate the audio -or databus. An advantage the ARP version has over the ARJ version is that it also offers a built-in repeater. This repeater extends the maximum distance from 300m to 600m. This device is also fully compatible with bTicino installation materials.

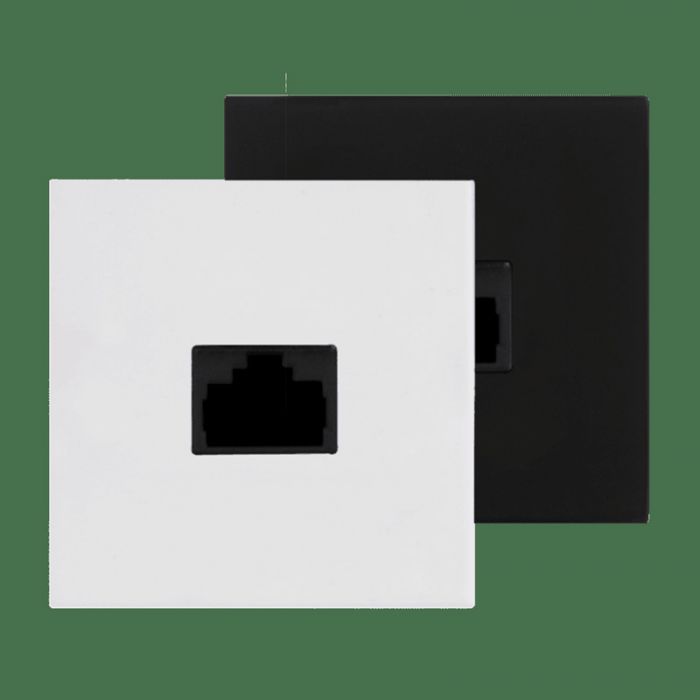

VARIANTS

CP43ARP/B - Black version
CP43ARP/W - White version

Connectors Front RJ45 (Pin 1-8)
Rear 10-pin Euro Terminal Block (Pitch - 3.81 mm)
Power 2-pin Screw Terminal

Dimensions 43 x 43 x 30 mm (W x H x D)
Weight 0.060 kg
Built-in depth 40 mm (min.)
Construction ABS
Finish Soft-touch painting
Mounting 43 x 43 mm (bTicino)
Colours White (RAL9010) (CP43ARP/W)
Black (RAL9005) (CP43ARP/B)
Accessories Optional CP45CF1 Cover frame
CP45CF2 Cover frame
PSD242 - 24 V Power Supply
