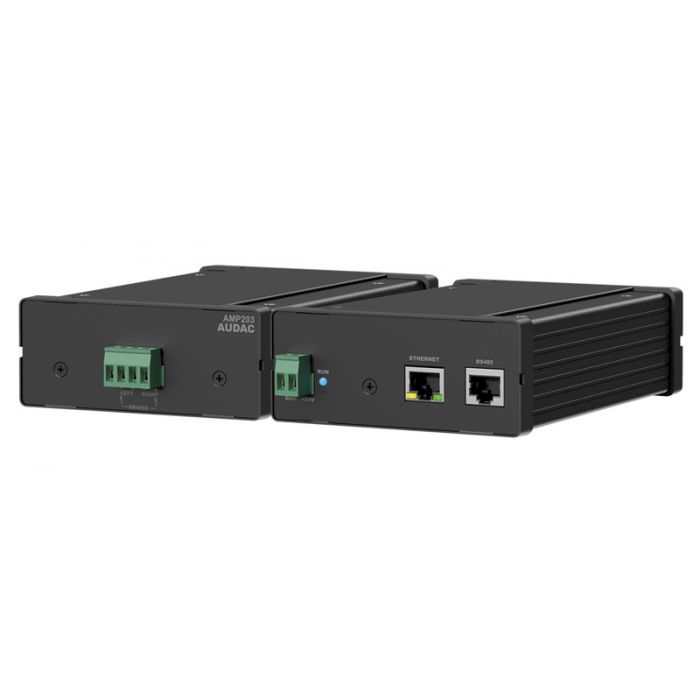

The AMP203 is a revolutionary small amplifier, featuring network input through Dante or AES67 providing a complete media networking solution to distribute uncompressed audio via standard Ethernet networks with near-zero latency, while allowing all other data to be connected on the same network.
The output connector has been implemented using a 4-pin terminal block connector, featuring an output power of 30W per channel and 60W when bridged.
Using PoE (Power over Ethernet) this extremely power-efficient amplifier receives both power and signal through a single networking cable, this way flexibility is maximized while needed cabling is kept at a minimum.
The compact convection cooled enclosure eliminates any humm or buzz otherwise caused by a fan. Various optional mounting brackets are available like the MBS1xx series, which allow it to be mounted under a desk, in a closet, on the wall, on top of a dropped ceiling or to a 19" equipment rack. This proves that the AMP203 is the perfect solution for compact to medium-sized applications in corporate, hospitality or retail environments.
Decentralize your system
Thanks to the multifunctional use of the AMP203 in combination with the AUDAC Touch™ 2 app it is possible to create a decentralized multi-zone system. By simply connecting the AMP203 to the local network and connecting the loudspeakers, a new zone can be introduced to your system.
DSP functionalities coming soon in AUDAC Touch™ 2
By the end of Q2 2020, various DSP functionalities will be implemented. This will allow all configurations to be made in AUDAC Touch™ or via RS485 and Ethernet, making the AMP203 a fully-fletched 2 x 30W amplifier.
