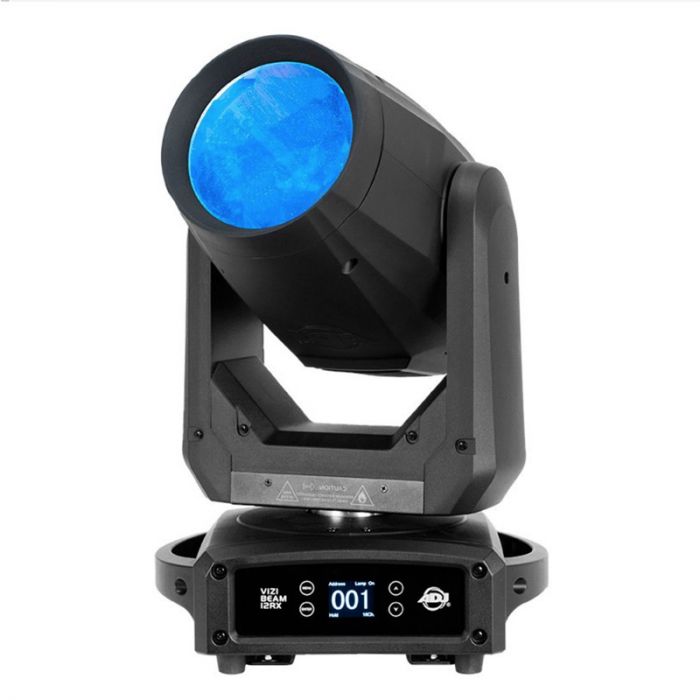

American DJ Vizi Beam 12RX

The Vizi Beam 12RX is high powered beam moving head powered by the brilliant 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.). It produces a razor sharp 2-degree beam of lightwith motorized focus. It comes with 14 colors + open (including UV, CTO & CTB, with color indexing), 16 fixed GOBOs + open (with GOBO indexing), and a frost filter for wash effects. To create breathtaking aerial effects, the Vizi Beam 12RX is fitted with two prism wheels - a 6 facet liner prism and a 24-facet circular prism.

The Vizi Beam 12RX offers 2 DMX modes (14 or 16 channels) and RDM control options. It has 3-pin and 5-pin DMX In/Out connections and IP65 Locking Power In/Out connections to daisy chain the power from one fixture to the next. It has a color display with 4-button internal menu system.

Source

• Philips Platinum 12R Long Life Discharge

• Lamp Wattage: 260W

• Average Lifetime: 6,000 hrs

• Color Temperature : 7800K

• CRI: 74

• Lux: 70,000 lux @20m



Optics

• Beam Angle: 2-degrees

• High Quality Glass Lens

• 2 Prisms

24-facet rotating circular prism

6-facet rotating linear prism

• Linear Frost filter

• Motorized 16bit Focus



Control

• 2 operational Modes: Internal Programs or DMX Control

• 2 DMX Channel Modes: 14 or 16 Channels

• RDM compatible (Remote Device management)

• 16bit Pan 540°

• 16bit Tilt 270°

• Various strobe effects

• Display: Color display with 4-button function menu



Colors

• 1 Color Wheel with 11 colors + CTO + CTB + UV + White

• Split Colors



Gobos

• 1 metal Gobo Wheel with 12 static Gobos + 4 beam reducers + Open



Construction

• PVC molding

• Includes omega brackets



Electrical

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Power consumption: 371W



Connections

• 3 & 5-pin Locking DMX In/Out connections

• IP65 Locking Power In/Out connections

• USB Service Port for software updates



Dimensions & Weight

• Dimension: 350 × 343.5 × 565mm

• Weight: 18 kg.
